MATCH PP 10W-Q 4 x 3 ohm Element For Match PP62 og 86 MATCH PP 10W-Q 4 x 3 ohm Element For Match PP62 og 86

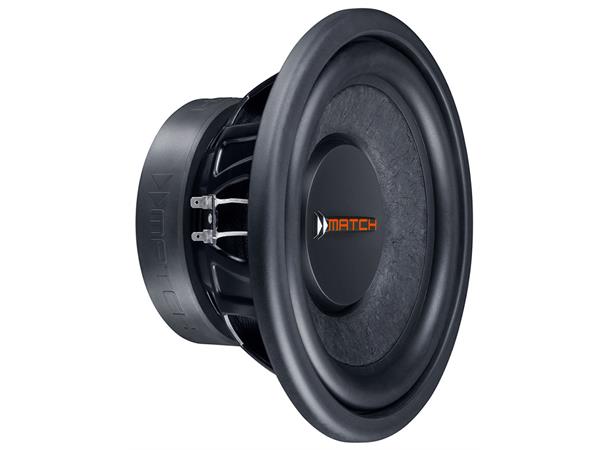

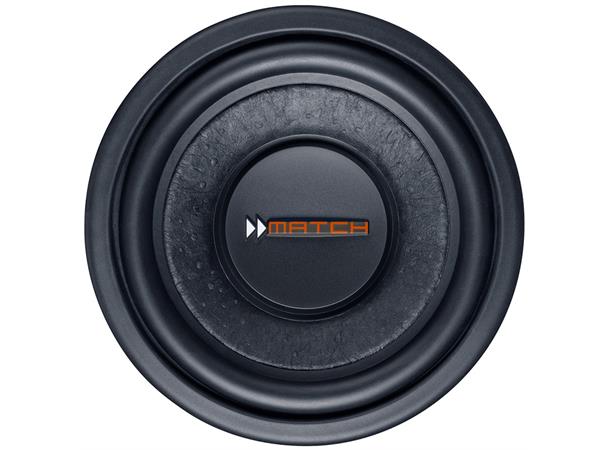

MATCH PP 10W-Q 4 x 3 ohm

Element For Match PP62 og 86

Varenr:122564
Alt varenr:PP10W-Q
1 490,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse
  • You did not find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your "personalized" version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our "standard" subwoofers.
  • 10” / 250 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
  • Extremely stiff hand-scooped paper cone for maximum sound pressure
  • Double ventilated voice-coil for minimum compression effects
  • Powerful magnet for compact-sized vented enclosures
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers
  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
  • Power RMS / max. P 300 / 600 Watts
  • Impedance Z 4 x 3 Ohm
  • Resonance frequency Fs 29 Hz
  • Total Q factor Qts 0.35
  • Equivalent air volume Vas 46 L
  • Force factor B*I 23.5 Tm
  • Efficiency 1 W / 1 m SPL 87 dB
  • Cone area Sd 333 cm²
  • Moving mass Mms 98 g
  • Voice coil diameter ø 50.8 mm
  • Outer diameter ø 265 mm / 10.43"
  • Installation diameter ø 232 mm / 9.13"
  • Installation depth 128.5 mm / 5.06"
  • Vented box Net volume 18 L
  • Port diameter ø 70 mm / 2.75"
  • Port area 28 cm²
  • Port length 33 cm / 13"
  • Port tuning frequency Fb 39 Hz
  • Lower limiting frequency (-3dB) 36 Hz
  • DSP settings:
  • - Highpass: Self-Define; crossover frequency 33 Hz; Q factor 1.3
  • - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz
