FEATURES
Radio / DAB Tuner
- Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
BLUETOOTH®
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones and iPods featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
Connectivity
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
- Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam
Navigation Function
- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS / Glonass enabled navigation antenna
USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Various search functions included
Sound Tuning
- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 4 V PreOut
- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting
- For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
General
- 4x 50 Watts Class-D High Power Amplifier
- 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
- Display angle adjustable after installation
- 3 PreOuts (4 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
Installation
- Various vehicle specific installation kits available
SPECIFICATIONS
Screen
- Screen Size: 9-inch Capacitive WXGA
- Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4x 50 W
Radio / DAB Tuner
- FM Tuning Range: 87.5 - 108.0 MHz
- AM Tuning Range: 531 - 1,602 kHz
- DAB band III: 174 – 240 MHz
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
WiFi
- Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

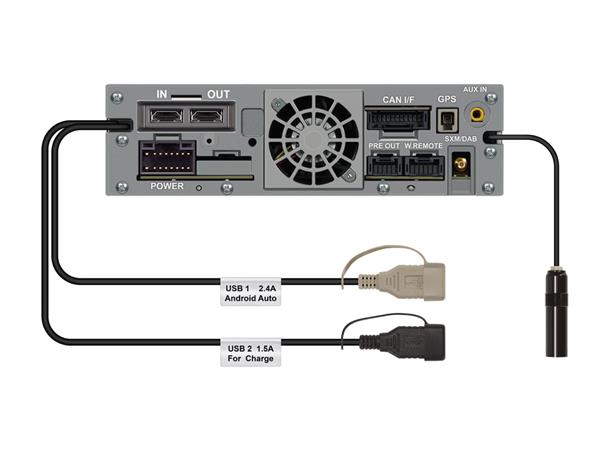

USB
- USB Requirements: USB 2.0
- USB 1: data port / 2,400 mA (Mass Storage Class)
- USB 2: charging port / 1,500 mA (CDP support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE Decoding
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1 kHz): 0.005%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 95 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
- GPS frequency: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): - 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Supports LDAC Audio Codec
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5 Modes, Level 0 to +6
- For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
HDMI Section
- Input Format 720p / 480p / VGA
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
Dimensions
- Weight: 2.3 kg
- Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
- Display Size (W x H x D) mm: 232 x 151 x 55 mm
Please Note:
Due to the weight of the large screen, we do not recommend fitting this radio in dashboards only with use of a traditional type of 1DIN frame. Please use radio kits that are properly rooted in the dashboard.
