AUDIO EXTENDER KIT ANALOG & DIGITAL

Lyd over datakabel analog og digital lyd

Varenr:123580
Alt varenr:EXT-AU313-TP
2 495,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse
AUDIO EXTENDER KIT FOR ANALOG OR DIGITAL AUDIO

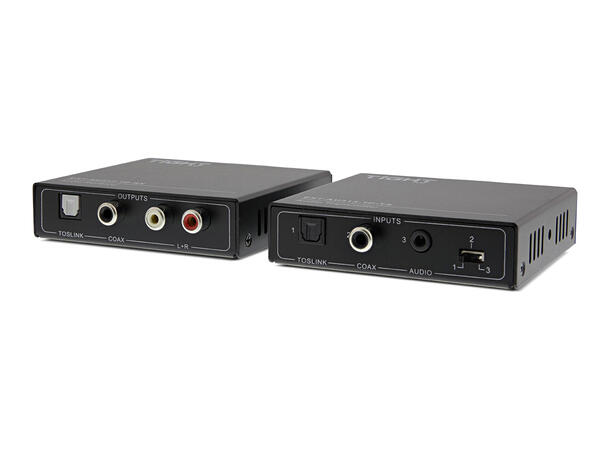

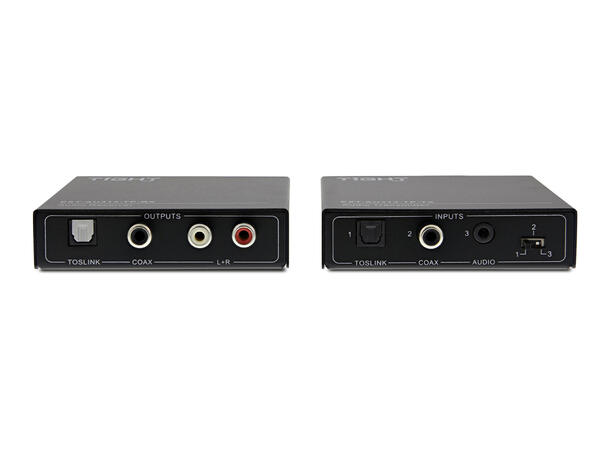

The EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.

KEY FEATURES:



• Three selectable audio inputs: Optical, Coax and Analog Stereo.
• Audio will be outputted simultaneous to the three different outputs: Optical, Coax and Analog Stereo.
• Convert audio signals from digital into analog, or analog into digital.
• Supply power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
• The transmission distance of analog stereo audio can up to 170 m, and the digital Optical/Coax audio up to 290m over an CATx cable.

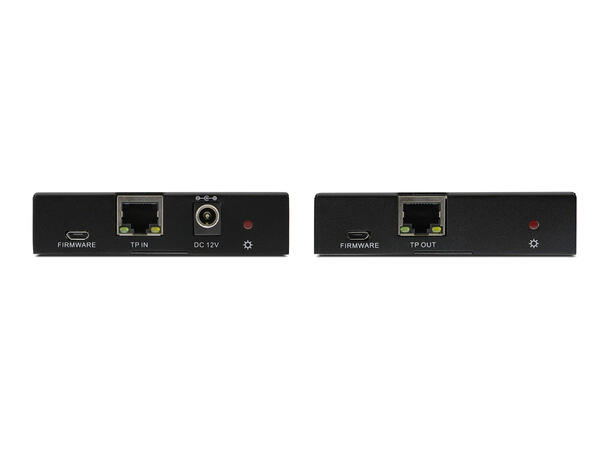

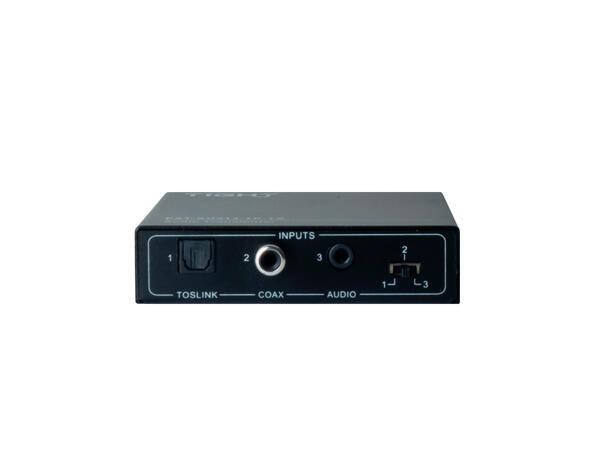

Transmitter

Input

(1) TOSLINK,(1) COAX,(1) AUDIO (Stereo)

Input Connector

(1) Toslink, (1) Black RCA, (1) 3.5mm jack

Output

(1) TP OUT

Output Connector

(1) RJ45

Control

(1) FIRMWARE

Control Connector

(1) Micro USB

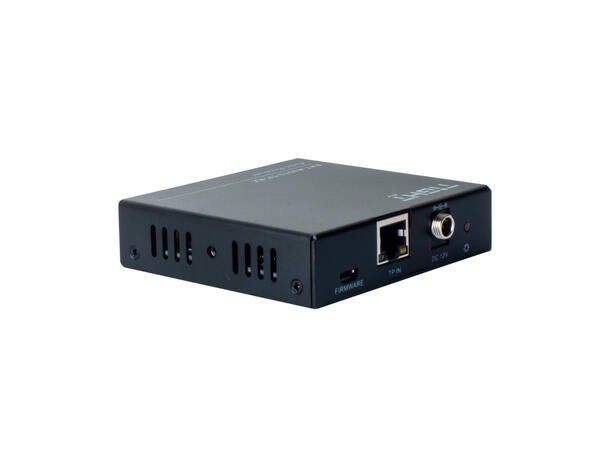

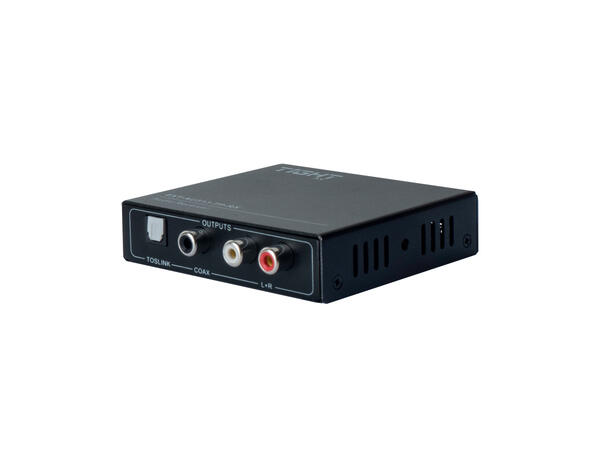

Receiver

Input

(1) TP IN

Input Connector

(1) RJ45

Output

(1) TOSLINK,(1) COAX,(1) L+R (RCA)

Output Connector

(1) Toslink, (1) Black RCA, (1) Red & White RCA

Control

(1) FIRMWARE

Control Connector

(1) Micro USB

General

Input Audio Format

TOSLINK: PCM, Dolby, DTS

COAX: PCM, Dolby, DTS

AUDIO: Stereo

Output Audio Format

TOSLINK: PCM, Dolby, DTS

COAX: PCM, Dolby, DTS

L+R: Stereo

Sound Channel

TOSLINK: 2.0~7.1

COAX: 2.0~7.1

Frequency Response

All audio: 20Hz ~ 20kHz, ±3dB

Sample Rate

TOSLINK:48k/96k/192k 16bit/18bit/24bit

COAX: 48k/96k/192k 16bit/18bit/24bit

Transmission Distance

Stereo audio: Up to 170m (CATx)

TOSLINK/COAX audio: Up to 290m (CATx)

Power Consumption

2.5W (max)

Operation Temperature

0 ~ +40?

Storage Temperature

-10 ~ +50?

Relative Humidity

0% ~ 90%

External Power Supply

Input: 100VAC~240VAC, 50/60Hz; Output:12VDC 1A

Dimension (W*H*D)

88mm x 21.5mm x 80mm

Net Weight (g)

Transmitter: 110g,

Receiver: 120g
