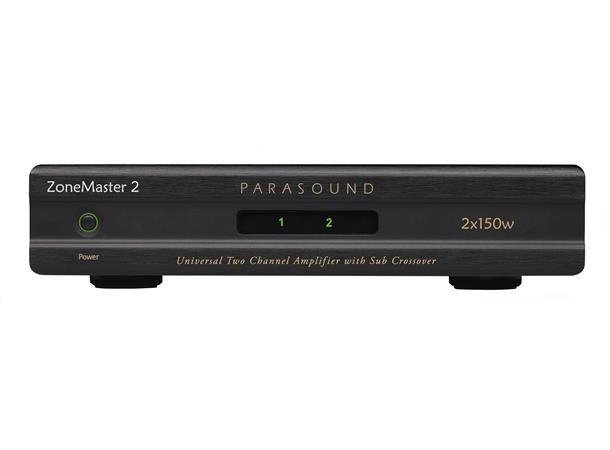

Parasound ZoneMaster 2 Amp

Zonemaster - 2 kanals forsterker med 4 høyttalerutganger

Parasoud Zonemaster 2 er en universal 2 kanals forsterker med 4 høyttalerutganger pluss egen utgang med delefilter for subwoofer. Stikkord for Zonemaster 2 er : 2x120Watt i 8 Ohm, 150 Watt i 4 eller 2 Ohm! Høyttalernivåinngang for å utvide systemer ved å ta signaler fra forsterker uten egen pre-out utgang. Separate volumkontroller for begge kanalene. Innebygd 80Hz lavpassfilter i Bridge mode for å drive passive subwoofere i vegg eller tak. Mono-modus kombinerer venstre og høyre kanal for en enkelt høyttaler.

• 120 watts x2 @ 8 O
• 150 watts x2 @ 4 O or 2 O
• 4 speaker connections (A and B outputs for both channels)
• High current for stable operation at 2 Ohms
• Class AB input stage plus premium Class D power stage
• Audio sensing auto-on trigger
• 12 volt auto-on trigger input
• Looping 12 volt trigger output
• Speaker level input for expanding systems w/out pre out jacks
• Looping output to connect additional amplifiers
• Mono mode combines L and R for single speaker applications
• Separate level controls for both channels
• Detachable speaker connectors accept up to 12 gauge wire
• Short circuit and overheat protection with front panel indicators
• 0.5 watt standby power consumption meets Energy Star & EU specs

• ZoneMaster 2 Specific Features

• Compact 1u, 1/2 width chassis size

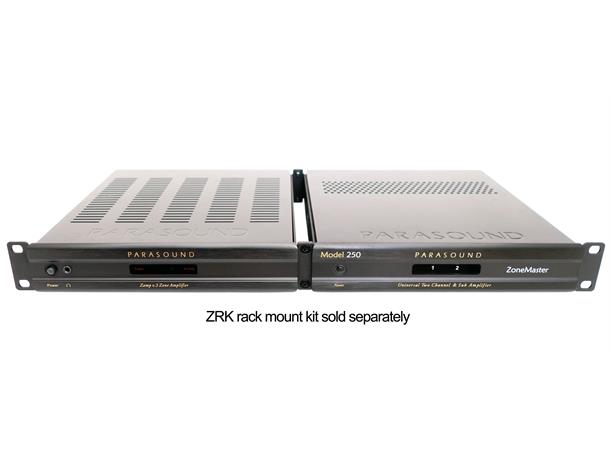

• "ZRK" Rack mount kit sold separately
• Full Range Mono RCA Output
• 80Hz low pass Mono RCA output (for sub)
• Built in 80Hz low pass filter in bridged mode for driving in-wall/in-ceiling woofers or passive sub(s)
