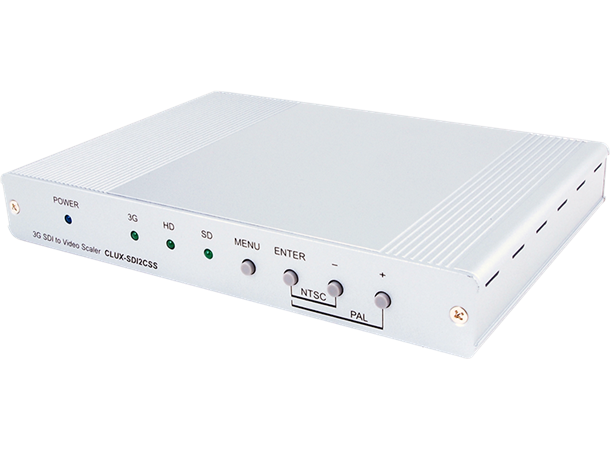

3G-SDI til CV/SV Scaler

The 3G-SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown on CV/SV display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and analog audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on SDI, Composite Video and S-Video displays.

Spesifikasjoner

• Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
• Supports CV/SV and SDI (bypass) output simultaneously
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
• Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
• Scale any SDI signal to CV/SV of NTSC or PAL format
• Support SD-SDI SMPTE 259M-C, at bitrates of 270 Mbit/s; HD-SDI SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s; 3G-SDI SMPTE 424M/425M-A, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
• Equalized and re-clocked loop output
• Alternative audio output to coaxial and analog 2CH
• Inputs 1x BNC [1x 3G-SDI]
• Outputs 1x BNC [1x Loop Output 3G-SDI]1x S-Video [1x S-video]1x RCA [1x Composite Video]1x RCA [1x Coax 2 Channel LPCM]2x RCA [1x Stereo (L/R)]
• PSU: 5V/2.6A
• Dimensions 180mm [W] x 142mm [D] x 25mm [H] Net Weight 435g
