Cypress HDMI EDID Emulator
Read/Write EDID
The CED-1M is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.
Spesifikasjon:
•Compliant with HDMI and DVI 1.0 standards
•Supports the following HDMI features:
- High video bandwidth up to 340 MHz / 10.2 Gbps
- Resolutions up to 1080p@60 Hz and 4K×2K@24/30 Hz
•6-bit Deep Color
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio (Sampling rates from 32 kHz to 192 kHz)
•Supports four different EDID Modes:
- Read Mode: Reads the TV/displays EDID information
- Write Mode: Overwrites the TV/displays EDID information (TV/display needs to be able to support overwrite function)
- Emulator Mode: Allows the source device to read the selected EDID information from the units default or learned EDID memory
- Bypass Mode: Allows the source device to read the EDID information from the TV/display directly
•Supports 8 sets of default EDID
•Supports DVI source by using HDMI to DVI adaptor
•Supports CEC and EDID pass-through
•Supports being powered by USB or HDMI input
Inputs 1x HDMI [1x Uncompressed AV and Data]
1x USB Mini B [1x Propriety Data / USB Power]

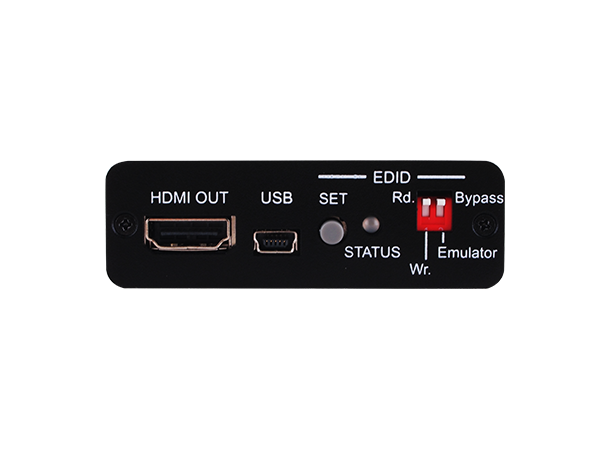

Outputs 1x HDMI [1x Uncompressed AV and Data]
PSU: USB powered
Dimensions 71mm [W] x 71mm [D] x 23mm [H]
Net Weight 108g
