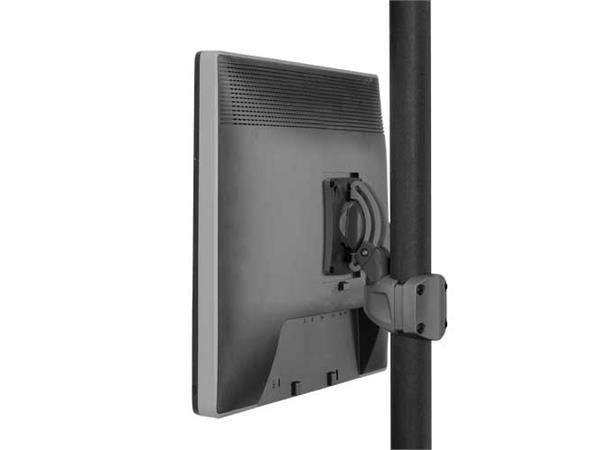

Chief K0P100B

K0 Pole Mount with Extreme Tilt Pitch/Pivot



The new Kontour™ K0 Pole mounts, with Centris™ Extreme Tilt Pitch/Pivot, are great solutions for mounting a single monitor with exceptional range of motion. With an extremely low profile and sleak design, applications include public spaces, back-kitchen video monitoring, security monitors, or in the office.



Features

•Sleek, solidly-constructed mounts in subtle semi-gloss silver & black finishes
•Enhanced fingertip positioning of monitor(s) for optimal viewing comfort
•Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt
•Adjustable tension settings on rotation & tilt allow for customized movement
•Teardrop hole pattern makes mounting the screen quick and easy
•VESA® 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-VESA compliant monitors)
•Easily installs on pre-existing poles with 1.5 - 2" (38 - 51 mm) outer diameters
•Ships fully assembled!


Specifications

Color: Black

Minimum Depth: 2.60" (66 mm)

Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm VESA

Number of Monitors: 1

Orientation: Landscape, Portrait

Pole Diameter Range: 1.50 - 1.90" (38.1 - 48.3 mm)

Post-Installation Leveling (Roll): Yes

Shipping Weight: 2 kg

Tilt: +75°, -10°

Typical Screen Sizes: 10 - 30" (254 - 762 mm) diagonals

Weight Capacity: Up to 40 lbs. (18.1 kg)
