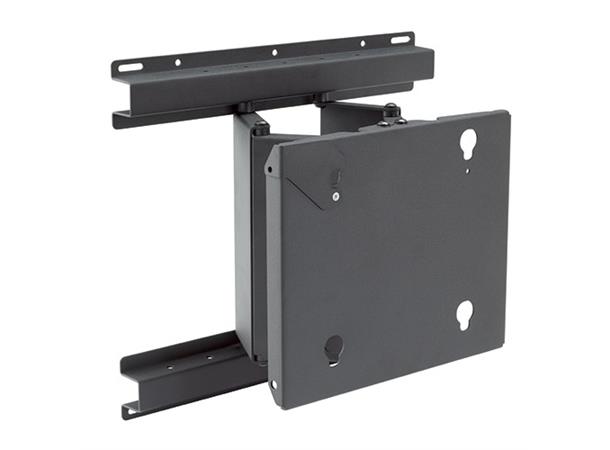

Chief MPWUB

Medium Flat Panel Swing Arm Wall Mount - 8" Extension

The MPW swing arm wall mount provides ultra smooth extension for flat panel displays and monitors, and remains low profile in the home position.

 Features
•Smooth extension up to 222 mm to achieve ideal viewing angle
•Ultra low-profile in the home position, only 38 mm deep
•Provides up to 45º of swivel in either direction (depending on screen size)
•Locable in home position to prevent articulation (pin included)
•Installs on 16" center studs
•Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
•Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)   Specifications Color: Black Lateral Shift: 4.5" (114.3mm) Maximum Extension: 8.75" (222.3mm) Minimum Depth: 1.5" (38.1mm) Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5") Orientation: Landscape, Portrait Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 87mm) Solution Type: Universal Typical Screen Sizes: 30 - 55" Wall Stud Compatibility (inches): 16 Weight Capacity: 100 lbs (45.4kg)
