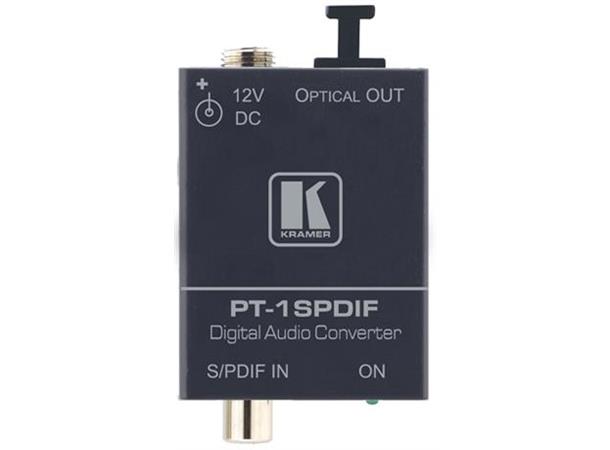

Kramer S/PDIF to Toslink®
Digital Audio Format Converter
The PT-1SPDIF are format converters for S/PDIF and Toslink® digital audio signals. The PT-1SPDIF converts a S/PDIF signal to a Toslink® optical signal.
S/PDIF Input - RCA Connector.
Toslink® Output - Toslink® Connector.
Ultra Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
Specifications:
- INPUT: 1 S/PDIF (digital audio) on an RCA connector
- OUTPUT: 1 Optical (digital audio) on a Toslink® connector
- POWER SOURCE: 12 VDC 50mA
- DIMENSIONS: 4.27cm x 2.2cm x 5.64cm (1.68" x 0.87" 2.22"), W, D, H
- WEIGHT: 0.3 kg. (0.67 lbs.) approx.
- ACCESSORIES: Power supply
