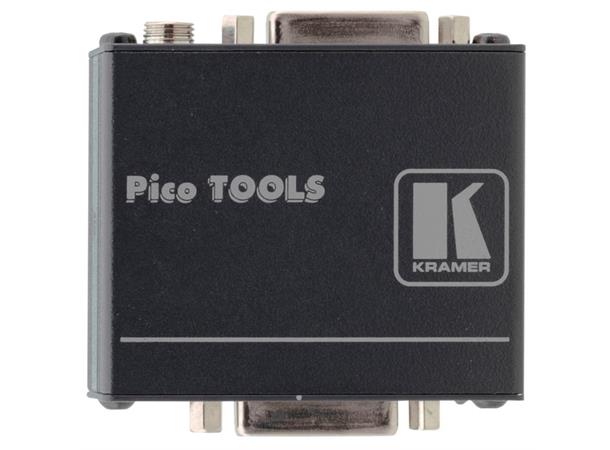

Kramer VA-1DVIN
DVI EDID Emulator
The VA-1DVIN is an EDID emulator for DVI-D signals. The unit can capture an EDID setting in non volatile memory from the output allowing convenient and reliable connection to the source.
Max Data Rate - 3.3Gbps.
Input/Output - DVI-D signals on DVI-I connectors.
Control - Capture button.
Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side by side in a 1U rack space with the optional RK-4PT rack adapter.
INPUT: 1 x DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL).
OUTPUT: 1 x DVI, dual Link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL).
BANDWIDTH: 3.3Gbps.
CONTROLS: Capture EDID button.
POWER SOURCE: 5V DC, 20mA.
DIMENSIONS: 6.22cm x 5.24cm x 2.41cm (2.45" x 2.06" x 0.95") W, D, H.
WEIGHT: 0.15kg (0.55lbs) approx.
ACCESSORIES: 5V DC power supply.
OPTIONS: RK-4PT 19" rack adapter.
