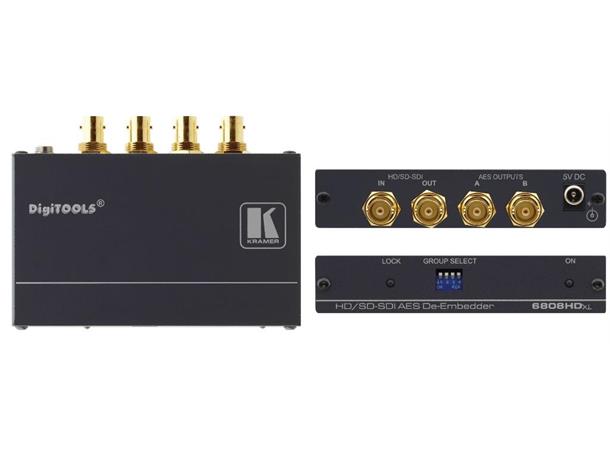

Kramer 6808HDxl
3G HD-SDI AES De-Embedder
The 6808HDxl is a high-performance audio de-embedder for 3G HD-SDI signals. The unit can de-embed two selectable AES audio streams.
Max. Data Rate - 3Gbps.
Input - 1 SDI.
Looping Input
Outputs - 2 AES-3id.
Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Group Select DIP-Switches - Select the audio group to de-embed.
HD-SDI & SDI Input Indication LEDs.
Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
INPUT: 1 SD/HD/3G HD-SDI.
OUTPUTS: 1 SD/HD/3G HD-SDI, 2 AES/EBU audio on BNC connectors.
POWER SOURCE: 5V DC, 390mA.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 3.0" x 1.0") W, D, H.
WEIGHT: 0.3kg (0.7lbs).
ACCESSORIES: Power supply.
OPTIONS: RK-3T 19 rack adapter.
