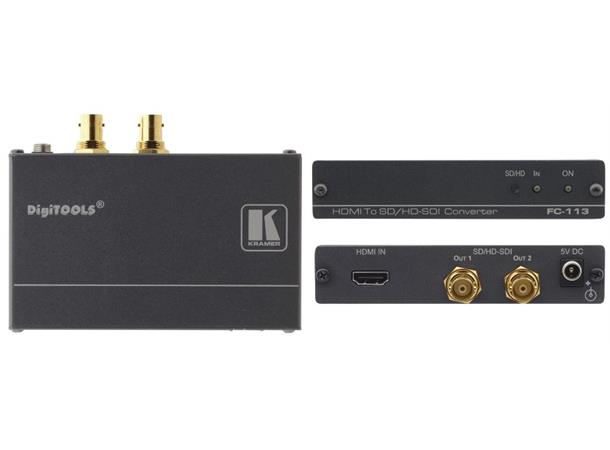

Kramer FC-113
HDMI til 3G HD-SDI Konverter
NB! Denne vil ikke konvertere HDMI med HDCP.
FC-113 konverter et HDMI signal over til 2 identiske SDI video+audio signaler.
Max. Data Rate - 3Gbps.
Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD SDI (SMPTE 424M).
Active Input™ LED Reporting - Green indicates standard definition (SDI), blue indicates a high-definition (HD-SDI) input signal, flashing indicates HDCP on the HDMI signal.
HDCP Encryption - Since the HD-SDI standard does not support HDCP, the status LED flashes when an HDCP encrypted input signal is detected, indicating that the input signal cannot be converted.
Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
INPUT: 1 HDMI connector.
OUTPUTS: 2 SD/HD-SDI, 3G HD-SDI on BNC connectors.
MAX. DATA RATE: Up to 3Gbps.
STANDARD COMPLIANCE: HDMI 1.3.
INDICATOR LEDS: SD/HD, OUT, ON.
POWER SOURCE: 5V DC, 440ma.
DIMENSIONS: 12cm x 7.2cm x 2.4cm W, D, H.
WEIGHT: 0.3kg (0.7lbs).
ACCESSORIES: Power supply.
OPTIONS: RK-3T 19" rack adapter.
