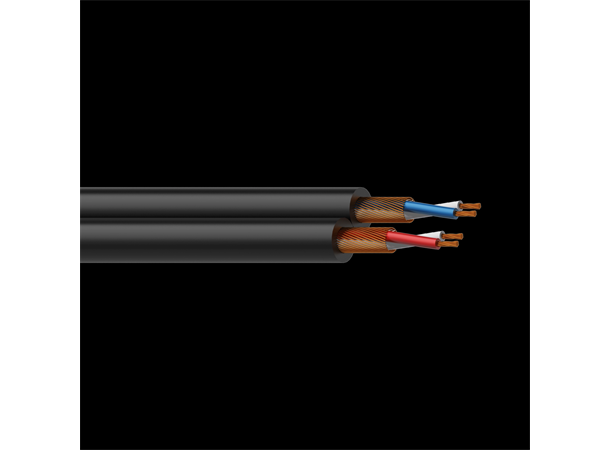

Procab SIG58/1 100

General Specifications

• Type of cable : Balanced stereo signal cable
• Inner conductor : 2 x BC 14 x 0.12 mm
• Inner conductor section : 0.16 mm²
• Isolation : LDPE ø 1.0 mm
• Isolation colour : Red / White, Blue / White
• Number of conductors : 2 x 2
• Conductor twisting : Yes
• Shielding : BC 32 x 0.12 mm - Spiral
• Shielding % : 100%
• Filling : None
• Separator : None
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : 4 x 8 mm
• Printing colour : White
• Printing text : Procab SIG58
• Lead resistance - 100 meter : 10.6 Ohm
• Cable crosstalk - 100 meter : Min 73.3 dB
• Cap. Lead to lead - meter @ 1 kHz : 54 pF
• Cap. Lead to shielding - meter @ 1 kHz : 98 pF
• American Wire Gauge (AWG) : 25
