4K Ultra HD video quality
UVC84 camera delivers 4K video output with excellent sharpness and smoothness,
accurately reproducing every detail, color and therefore awarding you a vivid video
experience.
12x optical and 3x digital zoom, 80° field of view
With 12x optical zoom, 3x digital zoom and 80° field of view, UVC84 can easily cover a
medium or large meeting space, everyone sitting in the meeting room can be clearly
seen by the remote party.
Integrated with Audio
UVC84 camera integrates the audio feature in it as well. Perfectly working with the
UVC84 camera, VCM34 array microphone or VCM38 ceiling microphone combined
with MSpeaker II soundbar is capable of providing a wonderful audio experience.
Auto Framing
UVC84 camera aims to provide a better auto framing feature to free your hands from
doing PTZ control, while focusing on your meeting.
Multiple installation options
The complete mounting kits allow you to put UVC84 on the conference table, or mount
on the top of TV, on the wall, on the ceiling, onto a TV stand or a tripod with great
flexibility according to your needs.

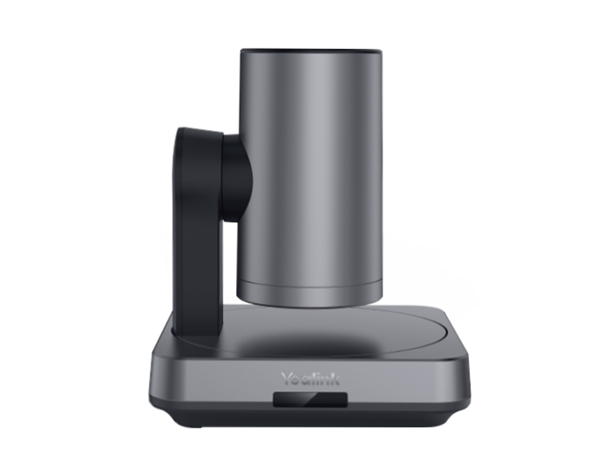

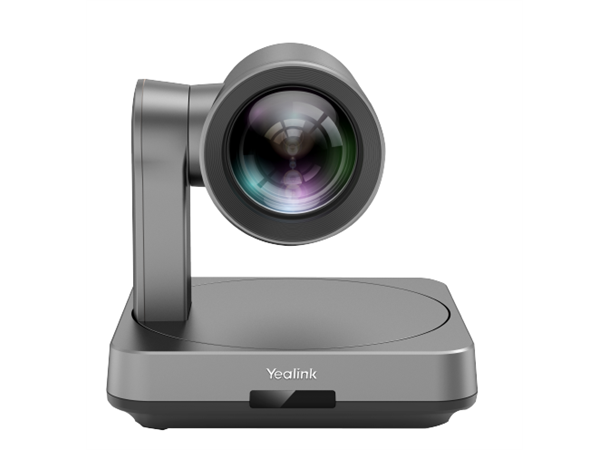

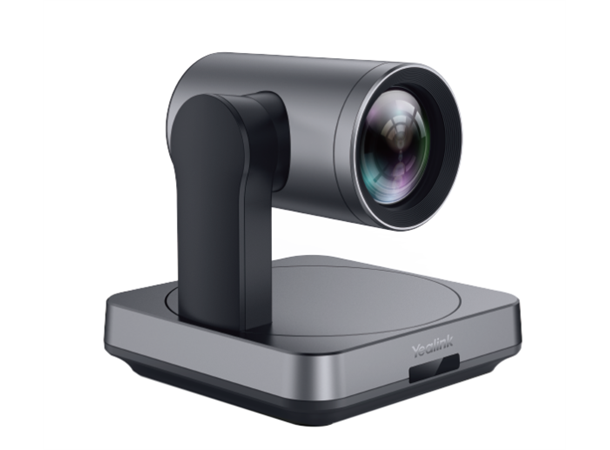

USB PTZ Camera
UVC84
Key Features and Benefits
• 4K video at 30 frames per second
• 12x optical zoom, 3x digital zoom, watch
everyone clearly
• Mechanical Pan, Tilt and Zoom
• Auto Framing feature, more intelligent meeting
experience
• Smooth PTZ control by remote control or Yealink
camera control plug-in
• Audio integration, perfect work with Yealink
audio device
Combined with 4K sensor and revolutionized new ID design, Yealink UVC84
USB camera provides a best ever video experience for your meeting. Featured
12x optical lossless zoom and 3x digital zoom, UVC84 reproduces every
single detail in meeting room, which is perfect fit for medium and large room.
Furthermore, UVC84 covers a wide field of view of 80°, with mechanical pan,
tilt that can be easily done either by remote control or Yealink camera control
plug-in software. Delivering best in class video quality to all participants,
Yealink UVC84 is the ideal choice for a truly collaborative, true-to-life communication.
1 x Yealink Microphone port (RJ45)
1x Line-out port
4K
12x optical, 3x digital zoom
0.5 lux (in daylight); 0.1lux (at night)
60FPS
±100°
ATW/Auto/Manual
+45°, -90°
Auto/Manual
F/1.6-F/2.8
73°
1/60~1/10000 seconds
1 x USB2.0 Type B
f=3.9mm to 46.8mm
AC 100~240V input
DC 48V/0.7A output
Windows 7, Windows 10, Mac OS 10.10 or higher
>63dB
UVC 1.0
Model UVC84
Field of View (Vertical) 45°
_
Video Output 4K30, 1080p60/30, 720p60/30
Package includes:
• UVC84 Camera
• VCR20 remote control
• Power adapter
• Wall bracket and accessories
• 2.5-meter USB cable
Camera
• 4K sensor
• 80° FoV
• 12x optical zoom, 3x digital zoom
• Pan: ±100°, Tilt: +45°, -90°
• Camera presets
UVC84 Connections:
• 1x USB2.0 Type-B port
• 1x Yealink microphone port (RJ-45)
• 1x 3.5mm line-out port
• 1x Power port
• 1x Security lock slot
• 1x Reset slot
Product Dimension (W.D.H)
• UVC84 Camera: 155mm x 155mm x 182mm
N.W/CTN: 2.9 kg
Other Physical Features
• External Yealink Power Adapter:
AC 100~240V input and DC 48V/0.7A Output
• Operating humidity: 10~95%
• Operating temperature: 0~40?
