MVC940 Microsoft Teams Rooms System
Microsoft Teams Rooms System for Extra-Large and Traning
Rooms

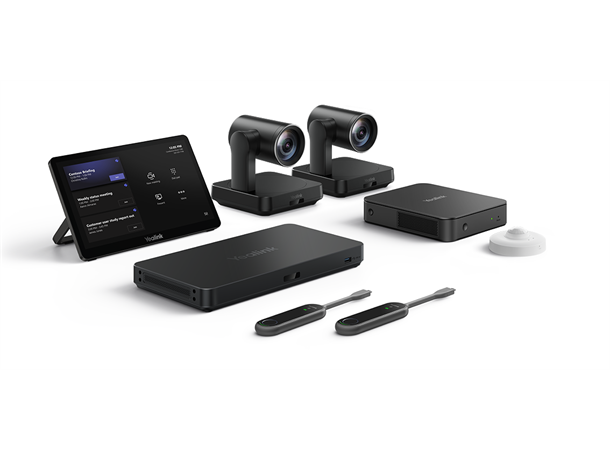

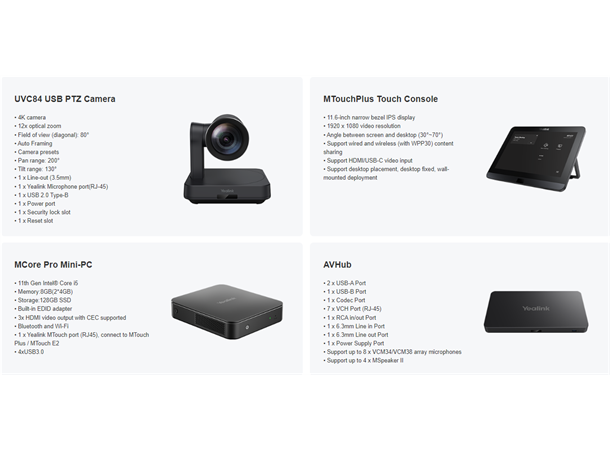

Yealink MVC940 is specially designed for extra-large conference rooms and training rooms. This
set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus,
intelligent 4K PTZ camera UVC84, and AVHub specially designed for audio and video processing.
AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which
can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with
voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various
large and super large meeting rooms, classrooms, and training rooms. The MVC940 set comes
standard with two UVC84 cameras, which can support 12x optical zoom-in and intelligent followup
shooting. On the MTouch Plus control panel, through Yealink RoomConnect, the cameras can
be controlled independently and switch layouts. You can combine the MVC940 with the MVCBYOD-
Extender, you only need to plug the USB cable into the PC to freely use the audio and video
equipment of the entire system, and you can convert the Microsoft Teams meeting room into a
multi-functional meeting room. In addition, multiple sets of MVC940 series products can be
combined through a network cable to build a conference room system that can be flexibly merged
and divided.
Key Features and Benefits
MVC940 Microsoft Teams Rooms System
Multi-cam solution, Flexible layout

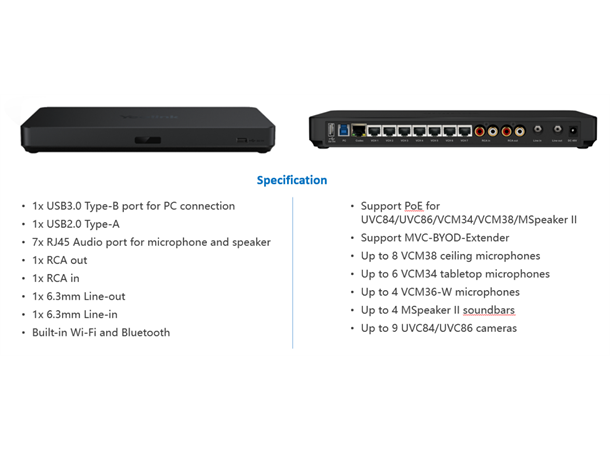

Relying on the audio and video processor AVHub, Yealink realizes the multi-camera solution that
supports up to 9 Yealink cameras. Users can control them independently through MTouch Plus or
splice the output video of multiple cameras and adjust the output video layout as desired.
Multiple sets of MVC 940 series can be combined through network cables to build a conference
room system that can be flexibly merged and divided.
Big and flexible conference control experience
Yealink third-generation touch panel MTouch Plus, with an 11.6-inch narrow-frame touch area, is
the iconic product of Yealink’s third generation. Yealink third-generation touch panel
innovatively supports multiple panels to control conferences at the same time*. You can freely
choose the deployment position of each panel according to the deployment needs of the
conference room and fully control the conference process.
Flexible audio, Flexible connectivity
Users can choose to use wired (VCM35, VCM38 Ceiling microphone) or wireless (VCM36-W, CPW65)
microphones for miking. Users can adapt to various conference room deployment scenarios, such
as desktop placement and ceiling placement. Yealink’s unique sound processing algorithm can
dynamically eliminate reverberation and noise according to the ambient sound in real-time,
effectively eliminate background interference and noise, and allow you to enjoy crystal-clear voice
at any time. By cooperating with third-party manufacturers* such as Biamp, Nureva, Shure and
YAMAHA, S90 can support their devices to access the conference system.
*Please visit the website to find the compatibility list of third-party audio equipment.
Convenient screen sharing and fast BYOD solution*
The MVC 840 supports Yealink’s unique WPP30 wireless content sharing solution and third-party
content sharing solution*, providing participants with maximum flexibility. Users only need to
plug in WPP30 or pair it with third-party screen sharing. can one key to initiate content sharing.
With a high resolution of 1080P/30 frames, it provides users with a better way to share content.
Users can also realize the wireless BYOD function through WPP30. It truly realizes the conference
room experience that you want.
*This feature will be supported in future versions.
Simple to deploy, Easy to use
With the VCH port and USB port, the Yealink audio and video system is specially designed for
video meeting rooms so that the deployment can be easily extended. At the same time, the cable
management feature of Yealink MCore Pro ensures the wire connection’s stability and the most
MVC940 Microsoft Teams Rooms System
appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e
is enough to connect the TV area and the conference table area and to complete the data
transmission and power supply. No additional power supply or extension cable is needed, which
not only simplifies the deployment but also effectively reduces deployment costs.
Manage your devices remotely
This solution supports Yealink Device Management Platform/Cloud Service. You can flawlessly
manage, monitor, configure, update and diagnose all Yealink audio and video device peripherals
on this platform remotely.
