Barco ClickShare Conference CX-20 Gen2

Transform small meeting rooms and huddle spaces into inspiring conference facilities

The modern world of enterprise requires smooth collaboration and flexibility, especially when it comes to team meetings in huddle rooms, and this is exactly what Barco ClickShare CX-20 provides. Encouraging creative innovation through seamless wireless conferencing, ClickShare CX-20 can make meetings more inspiring and more productive.

• Full BYOD support
• Remote collaboration
• Triple agnostic: works with any device, and UC technology and any brand of AV peripheral
• Enhanced security
• Connected and cloud managed

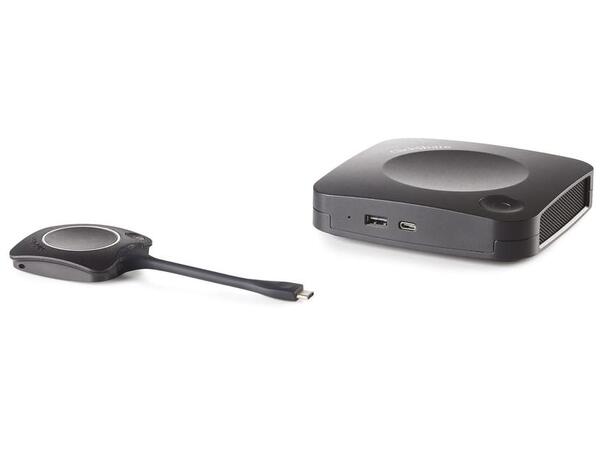

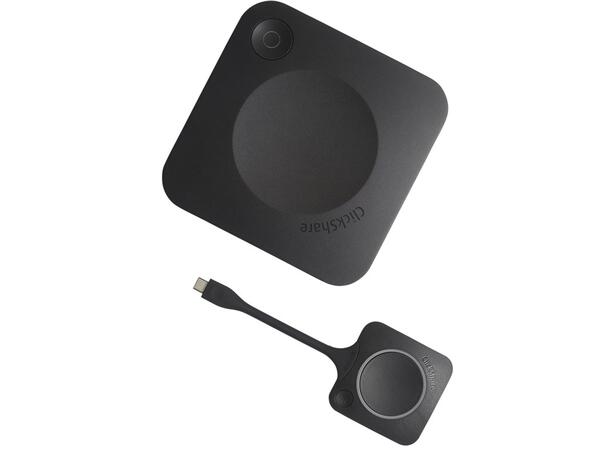

• Delivered with 1 Conferencing Button
• Collaborate with Conferencing Button or Collaboration App

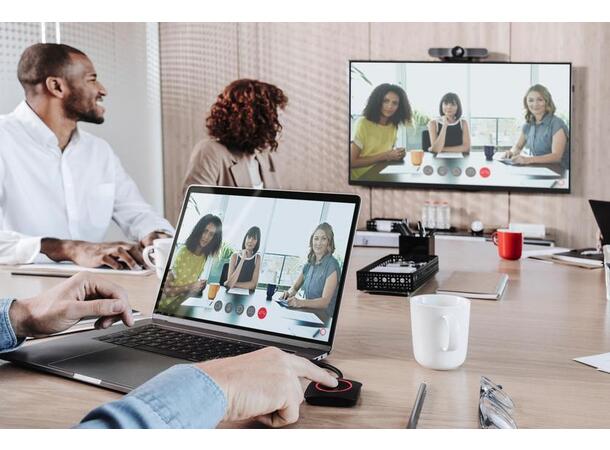

Start a huddle meeting from your device

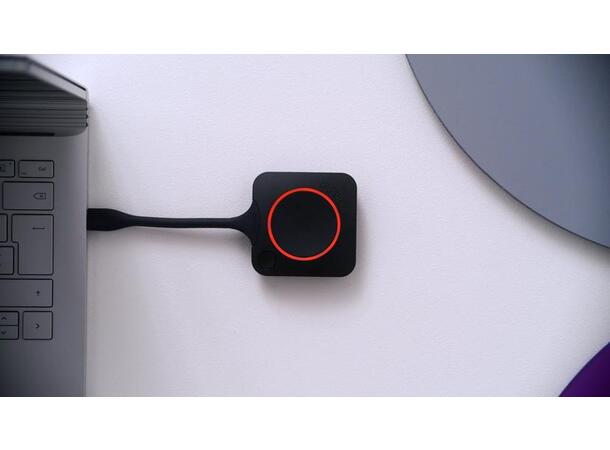

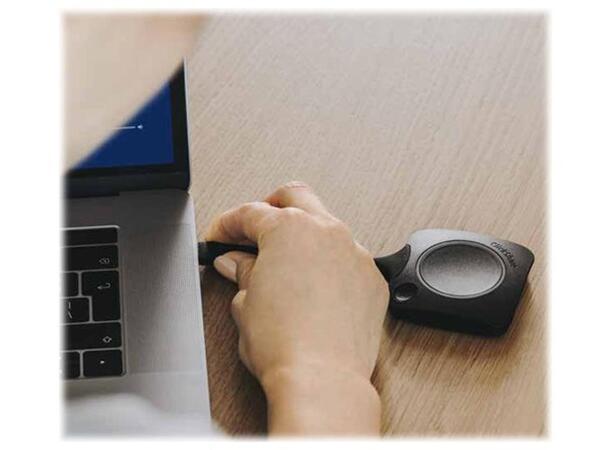

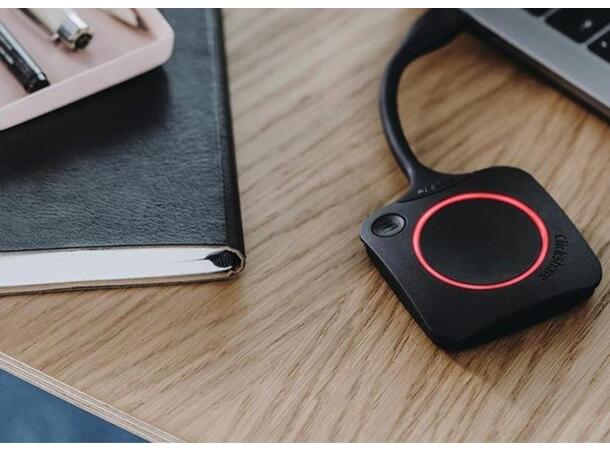

With ClickShare CX-20, it’s easier than ever to start remote huddle meetings from your device, bringing a seamless and immersive conferencing experience to all participants, whether local, guest or remote. Use your preferred conferencing software combined with the ClickShare Conferencing Button and you can start your conference in less than seven seconds. The CX-20 connects wirelessly to existing huddle room cameras, speakerphones and audio peripherals, saving time and maximizing efficiency.

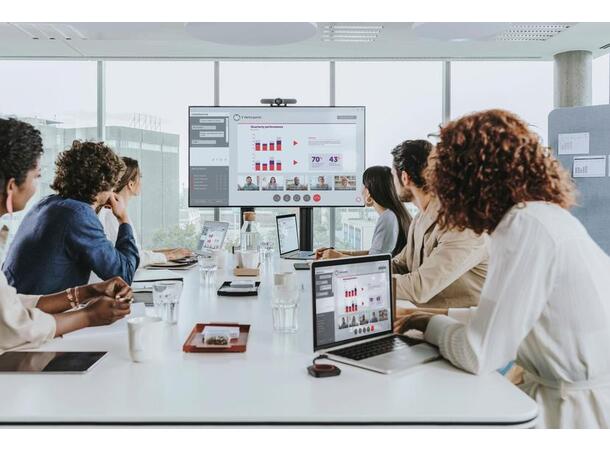

Decide how you want to collaborate

ClickShare CX-20 provides you with exceptional flexibility and choice, enabling you to decide just how you want to collaborate. Whether you’re on PC, Mac or mobile, the ClickShare Wireless Conferencing Button and ClickShare Collaboration App facilitate a user experience that’s both straightforward and consistent. In addition to its multi-device compatibility, ClickShare CX-20 is also fully compatible with your conferencing platform (UC) technology and your brand of USB-peripherals. Additional features such as local view of the room display help to optimize the experience.

Enhanced security and seamless integration

A perfect fit for any business environment, the ClickShare CX-20 wireless conferencing system comes equipped with a selection of great features for enhanced security and seamless integration. ClickShare Conference provides hassle-free integration with any IT network, while the XMS (Cloud) Management Platform provides for easy device management, as well as an intuitive user experience and clear analytics to get more out of your digital workspace.

Dimensions (HxWxD): 34 mm x 135 mm x 135 mm

Power supply: Standard 110/220 V AC plug

Power consumption Operational: 5-10W, 24W Max

Weight: 900 gr

Android v9 and higher (ClickShare App)*

iOS 12 and higher (ClickShare App)*

Video outputs

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b

Audio output

USB, HDMI

USB

1 X USB-A, 1 X USB-C

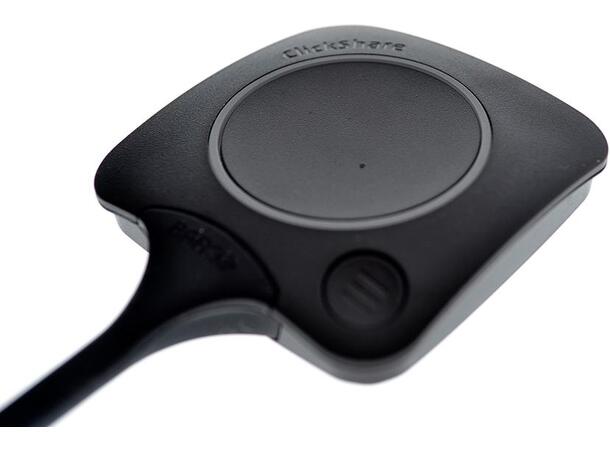

ClickShare Buttons

1

ClickShare App

Desktop & Mobile

Airplay, Google Cast, Miracast*

Noise Level

Max. 25dBA @ 0-30°C

Max. 30dBA @ 30-40°C

Authentication protocol

WPA2-PSK in stand alone mode

WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol

IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach

Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit

Frequency Band 2.4 GHZ and 5 GHz

Frequency band

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

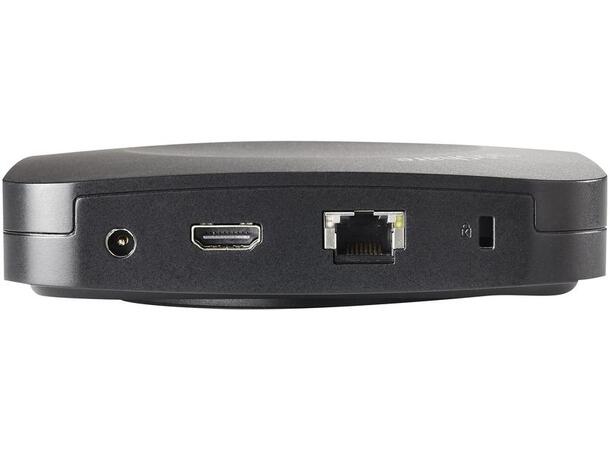

Connections

1x Ethernet LAN 1Gbit

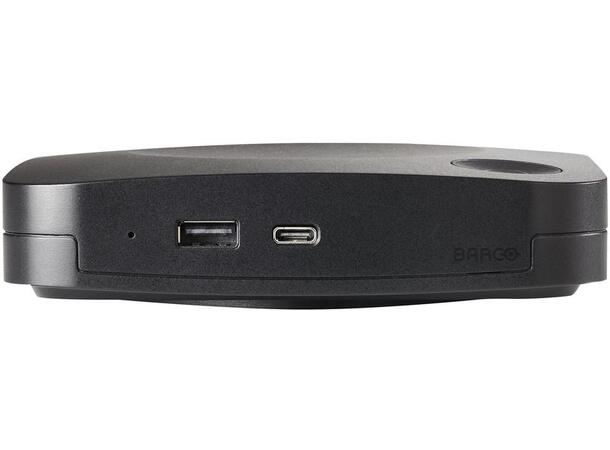

1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)

Max: 35°C (95°F) at 3000m

Storage: -20°C to +60°C (-4°F to +140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing

Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock

Certifications

FCC/CE

Touch screen support & Interactivity

/

Room Dock (peripheral support)

Yes

Local view & moderation

Local view of the room display only

LAN & WiFi

Management and reporting

Yes

Warranty

1 year standard.

5 years coverage via SmartCare

* depends on configuration, available in future firmware updates
