ClickShare CX-50 Gen 1

Bring premium wireless conferencing and remote collaboration to your meeting
rooms and boardroom

Connectivity is the key to success in modern business. In an increasingly interconnected global business environment, you need to ensure that your teams are continually in close collaboration with one another. ClickShare CX-50 is a premium wireless conference system designed to facilitate exactly this, connecting in less than seven seconds and allowing users to participate in completely wireless and productive conferences while also being able to deliver presentations in full HD without hassle caused by cables, connectivity or location.

Interact, discuss, collaborate with remote participants in superior AV quality driving multi-content sharing

• Full BYOD support
• Remote collaboration in highest quality
• Full interactivity and moderation
• Triple agnostic: your laptop, your conferencing platform (UC) platform and your brand of USB-peripheral.
• HDMI input cable
• Enhanced security
• Connected and cloud managed

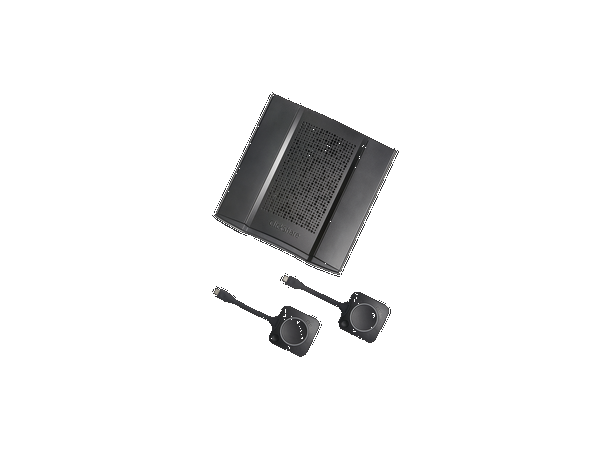

• Delivered with 2 Conferencing Buttons
• Collaborate with Conferencing Button or Collaboration App

Superior wireless conferencing

ClickShare CX-50 allows you to use your preferred conferencing tool and start a meeting from your device, providing an immersive conferencing experience with exceptional audio-visual quality. Connecting to conference room audio-visual peripherals via USB is automatic, meaning you don’t waste valuable time trying to connect to cameras or soundbars in the meeting, conference or boardroom.

Choose how you want to collaborate

With ClickShare CX-50, you can “bring your own meeting” and decide which way you want to collaborate. It offers a range of capabilities for more effective collaboration in your medium-to-large meeting rooms including annotation so meeting participants can add comments to slides, blackboarding so details can be updated in real time, moderation for team members to control what is shown on the meeting screen and complete touch-screen control through ClickShare CX-50 touchback support feature. Use the ClickShare Conference Button and the ClickShare Collaboration App (for PC, Mac and mobile devices) for an intuitive and consistent user experience.

A user-friendly experience and enhanced security

For any business environment, ClickShare CX-50 is a perfect fit. Featuring enhanced security for your privacy and peace of mind, ClickShare Conference can be seamlessly integrated into any IT network. The XMX(Cloud) Management Platform, meanwhile, allows for simple and straightforward device management as well as a user-friendly experience and clear analytics.

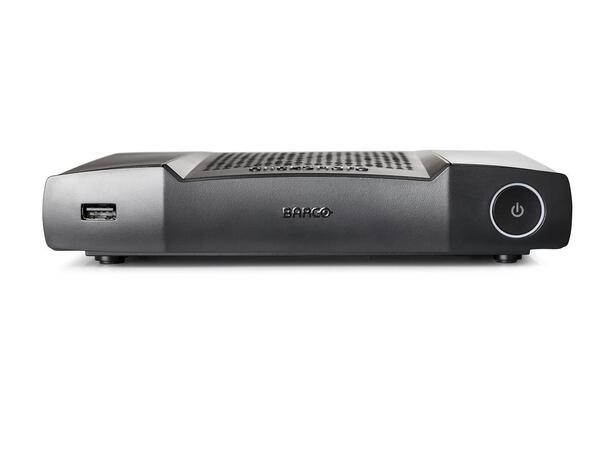

ClickShare Base Unit dimensions

Dimensions (HxWxD): 34 mm x 135 mm x 135 mm

Power supply: Standard 110/220 V AC plug

Power consumption Operational: 50W Max, Standby: <8W (networked standby), <0,5W (deep standby mode)

Weight: 900 gr

General specifications

Operating system

Windows 8/8.1/10. macOS 10.13 and higher.

Android v9 and higher (ClickShare App)*

iOS 12 and higher (ClickShare App)*

Video outputs

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b

Audio output USB, HDMI, SPDIF, jack

USB

3 X USB-A, 1 X USB-C

ClickShare Buttons

2

ClickShare App

Desktop & Mobile

Native protocols

Airplay, Google Cast, Miracast*

Noise Level

Max. 25dBA @ 0-30°C

Max. 30dBA @ 30-40°C

Authentication protocol

WPA2-PSK in stand alone mode

WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol

IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach

Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit

Frequency Band 2.4 GHZ and 5 GHz

Frequency band

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

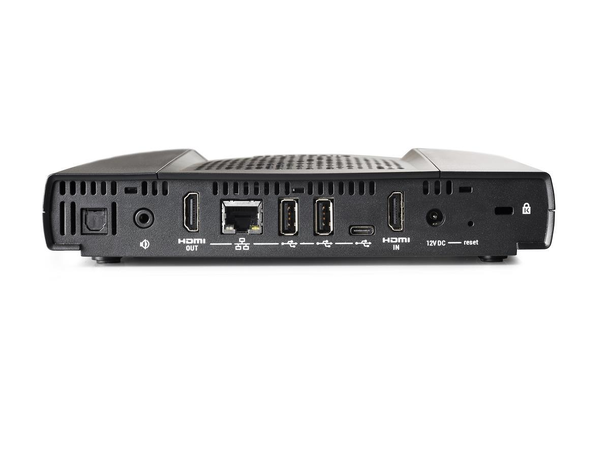

Connections

1x Ethernet LAN 1Gbit

1x USB Type-C 2.0 (back); 2x USB Type A 2.0 (back); 1x USB Type A 2.0 (Front)

Audio analog line out on mini jack socket (3.5mm) digital S/PDIF

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)

Max: 35°C (95°F) at 3000m

Storage: -20°C to +60°C (-4°F to +140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing

Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock

Certifications

FCC/CE

Touch screen support & Interactivity

Yes*

Room Dock (peripheral support)

High quality

Local view & moderation

High quality*

Network connection

LAN & WiFi*

Management and reporting

Yes

Warranty

1 year standard.

5 years coverage via SmartCare
