Yealink SkySound CM20 Ceiling microphone
Elevate Your Conference Room Experience
OBS I kombinasjon med UVC84 vil linje utgang på UVC84 Deaktiveres og man kan ikke bruke eksterne høyttalere. BRUK da CS10 høyttalere fra Yealink
The Yealink SkySound CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, SkySound CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
NOTE: Only compatible with UVC84, UVC86, AVHub, and in the MVC systems that include these products.
If customer need to use UVC86 and UVC84 as hosts, please follow these steps:
1. Ensure that UVC86, UVC84, and YRC are on version V33.
2. Upgrade CM20 to version 294.410.0.35.
3. Upgrade CS10 to version 298.410.0.40.
Key Features
Advanced Microphone Array:
SkySound CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones.
Superior Coverage:
Effectively covers up to 60?, with a high-quality 30? full-duplex audio capture, ideal for medium to large spaces.
Intelligent Sound Processing:
Integrates Yealink's advanced noise, echo, and reverberation cancellation technologies for crystal-clear audio in every meeting.
Intelligent Tracking:
Features 8 beam outputs for precise speaker tracking and integrates with room cameras for enhanced camera tracking, enriching meeting engagement.
In-built DSP for Simplicity:Equipped with an integrated DSP, SkySound CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.
Network and Deployment Efficiency:
Supports AES67 for easy integration into audio networks. PoE enabled, requiring just one Ethernet cable for power and audio.
Versatile Ceiling Integration:
Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration.
Elegant and Unobtrusive Design:

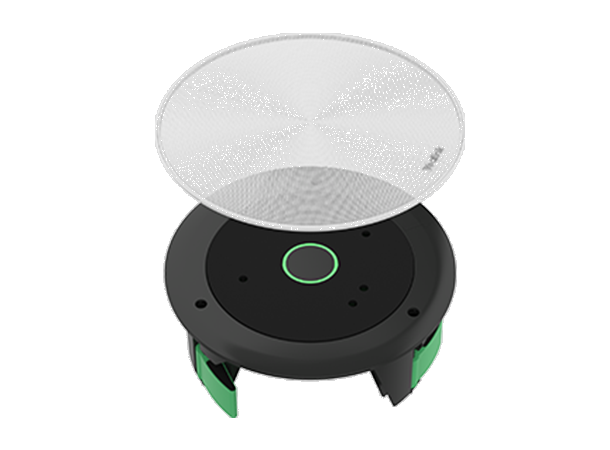

Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain.
Product Specifications
Size:
- F223 x H83mm (with cover mesh)
- F215 x H81mm (without cover mesh)
Weight:
615g
Product Color:
Pearl Light Gray
Product Materials:
ABS + PC&iron mesh
Package Content
- SkySound CM20 Microphone
- White Mesh Cover (Black Optional)
- Quick Start Guide
- Assembly Fixing Bracket
- Dust Cover
- Length-Adjustable Pole (Optional)
- Bracing Bridge x 1 pair
- Suspend Pole Adapter (Optional)
- Expansion Bolt x 6 (f6 x 30 mm, white, Polyamide)
- Self-tapping Screw x 6 (T4 x 30mm)
- Machine Screw x 5 (3 x 6PMOZN3+)
- Bracing Bredge Screw x 20 (M3 x 6PWMHOZN3)
