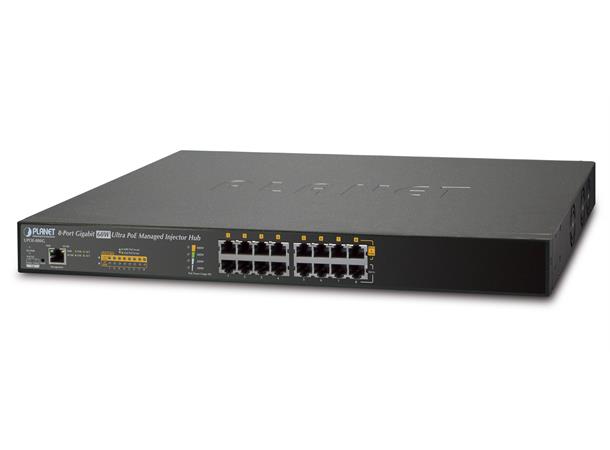

UPOE-800G
8-Port Gigabit 60W Ultra PoE Managed Injector Hub (400W)
Interface•Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards
•16-port RJ45
- 8-port 10/100/1000Mbps “Data input”- 8-port 10/100/1000Mbps “Data + Power output”•One 10/100/1000BASE-T management port
Power over Ethernet•Ultra Power over Ethernet end-span/mid-span PSE
•Up to 60 watts of power on 4-pair UTP
•Backward compatible with IEEE 802.3at/af PD device
•54V DC, 60-watt PoE power output at maximum on each port
•400-watt PoE budget
•Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100m
PoE Management•Per port PoE power schedule
•PoE function enable/disable
•Per port PoE function enable/disable
•PoE port power feeding priority
•PD classification detection
•Over temperature protection
•PD alive check
•PoE schedule
Management•Web interface for remote management
•Supports Network Time Protocol (NTP)
•Firmware upgrade through Web interface
•PLANET Smart Discovery utility automatically finds PLANET devices on the network
•SNMP trap for alarm notification of events
•System log/remote syslog
Hardware•19-inch rack mountable; 1U height
•Reset button for resetting to default setting and system reboot
•LED indicators for PoE ready and PoE activity
•LED indicators for power alert and fan alert
•LED indicators for PoE power usage status (watts)
•FCC Part 15 Class A, CE
