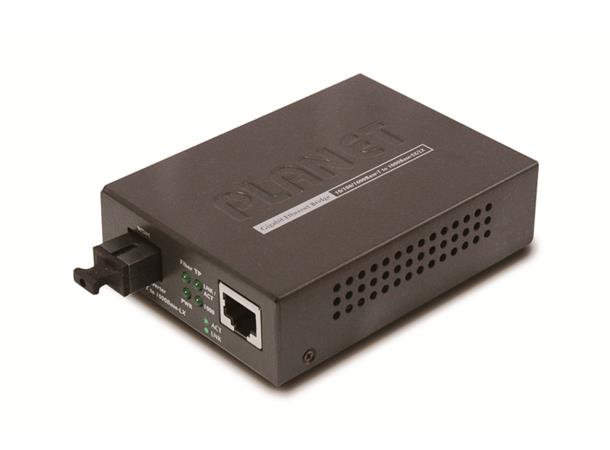

Planet GT-806B60
10/100/1000Base-T to 1000Base-LX
(WDM TX: 1550nm, SM) Media Converter -60km
Vi har en demo/brukt av denne modellen. Ta kontakt for spesialpris på denne.
! Man trenger en GT-806A60 for å danne en link. (Se tilbehør)
Overview
Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.
As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Key Features
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,
IEEE 802.3z 1000Base-SX/LX
• TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X
• 1000Base-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-
802)
• 1000Base-LX: 9/125μm single-mode cable provides long distance for 10km (GT-802S)
• 1000Base-LX WDM interface for up to 15km (single-mode fiber 9/125μm) on GT-
806A15/806B15
• 1000Base-LX WDM interface for up to 60km (single-mode fiber 9/125μm) on GT-
806A60/806B60
• 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
• Auto-Negotiation for 10/100/1000Base-T; Half-Duplex or Full-Duplex for 10Mbps and
100Mbps
• Layer 2 key Feature
–IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate
the loss of packets
–Support auto MDI/MDI-X function
–Store-and-Forward mechanism
–Non-blocking full wire-speed forwarding rate
• Media conversion between 10/100/1000Base-T and 1000Base-SX/LX
• Fiber media allows:
–Multi-mode fiber using SC/LC/WDM connector
–Single-mode fiber using SC/LC/WDM connector
• Compacts size for easy installation and working with PLANET MC family Media Chassis
( MC-700 / MC-1000R / MC-1500)
• Wall-Mountable design
• LED indicators for easy network diagnose
• Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for
1000Base SFP interface
• 9K Jumbo Frame Supported
• OAM (TS-1000 and IEEE 802.3ah) supported
