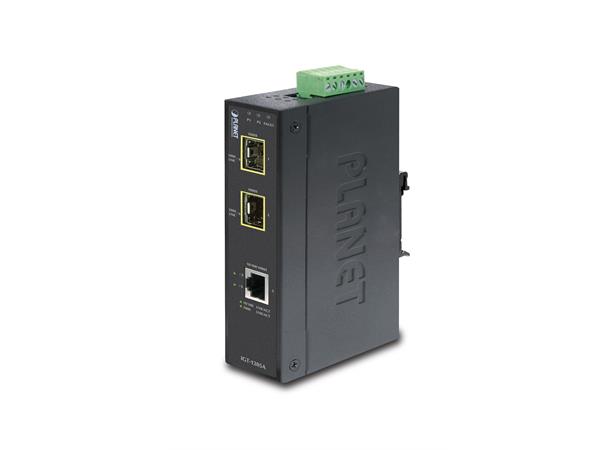

Planet IGT-1205AT Media Converter
Industrial 10/100/1000T to 2-port 100/1000X SFP
Physical Port
•1-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
•2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
Fiber Port Redundancy
•Link status auto-detect and redundant on dual ports with the same connector type
•Only Primary-Port is active at a time, the Backup-Port is blocked
•When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically
•Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port
Layer 2 Features
•Supports auto negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
•High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
•9K Jumbo Frame Size support
•Integrated address look-up engine, support 1K absolute MAC addresses
•Automatic address learning and address aging
Industrial Case / Installation
•Slim IP30 metal case protection
•DIN rail and wall mount design
•Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable•Supports EFT protection 6000 VDC for power line
•Supports 6000 VDC Ethernet ESD protection
•-40 to 75 degrees C operating temperature
