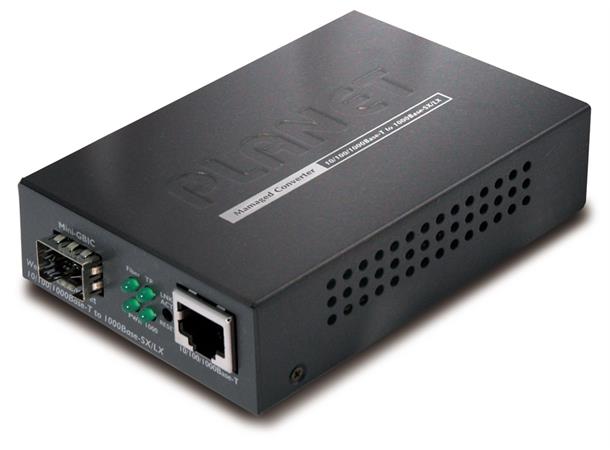

Planet GT-905A
Managed Gigabit Ethernet Media Converter
10/100/1000Base-T to mini-GBIC Managed Media Converter
Key Features
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,
IEEE 802.3z 1000Base-SX/LX
• One-channel media conversion between 10/100/1000Base-T and 1000Base-SX / LX
• TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X
• 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
• Compact size for working with PLANET MC family Media Chassis (MC-700/1000R/1500)
• Wall-mountable hardware design
• Built-in IP-based Web interface for remote management
• Layer 2 Management Feature
–Store-and-Forward mechanism
–Built-in Web interface for remote management and setup
–Manual IP address setting / DHCP client for IP address assignment
–SNMP v1 / v2c monitor / private Enterprise MIB
–Event trap and SNMP trap support
–Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP /
Fiber port
–Supports Port Status / Ethernet Statistics on both TP and Fiber interface
–Supports Maximum frame size to 16K bytes
–Loop detection / Broadcast / Multicast / Unicast storm control
–Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
–802.1p Tag Priority / IP address priority / IP DSCP option in Quality of Service
Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
–TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
–16 TCP / UDP Filter groups
–Password setting, IP setting and devices description setting through Planet Smart
discovery utility
–Firmware upgrade via remote Web interface
• External DC 5V 2A power supply
• LED indicators for easy network diagnosing
• Reset Button at the front panel for the factory default reset
• Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode
fiber /1000Base-SX / LX mini GBIC module
