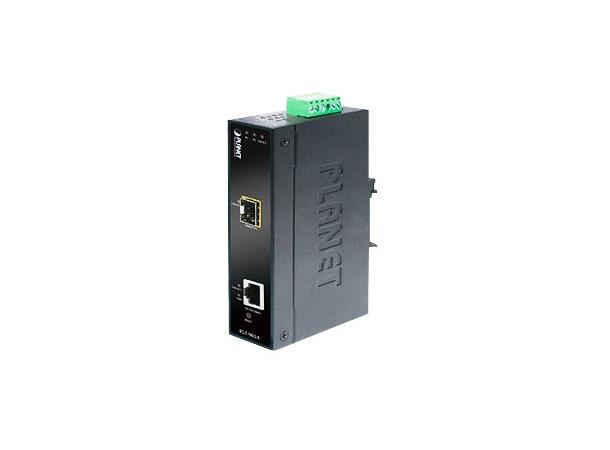

Planet IGT-905A
Industrial Managed Gigabit Ethernet Media Converter with Wide Operating Temperature (-30~75 Degree C)
Interface
• 1-Port 10/100/1000Base-T RJ-45 with Auto-negotiation and Auto-MDI/MDI-X function
• 1 Mini-GBIC slot, provides multi choice of SFP modules on IGT-905A
Industrial Conformance
• 12V to 48V DC, redundant power
• -30 to 75 Degree C operation temperature
• IP-30 metal case
• Relay alarm for port breakdown
• Supports 6KV DC Ethernet ESD protection
• Free fall, Shock and Vibration Stability
• DIN-Rail and Wall-mountable hardware design
Layer 2 Features
• Store-and-Forward mechanism
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• Maximum frame size to 9216 Bytes
• Loop detection / Broadcast / Multicast / Unicast storm control
• Supports VLANs
–IEEE 802.1Q Tagged based VLAN
–Up to 16 VLANs groups, out of 4K VLAN IDs
–Management VLAN
Quality of Service
• Ingress/Egress Bandwidth control on TP / Fiber port
• 4 priority queues, strict priority and Weighted Round Robin (WRR)
• Traffic classification by:
–IEEE 802.1p Class of Service
–IP DSCP priority
–IP Address priority
Management
• Built-in IP-based Web interface for remote management
• SNMP v1 / v2c and 4 RMON groups, Event trap and SNMP trap support
• Manual IP address setting / DHCP client for IP address assignment
• TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
• 16 TCP / UDP Filter groups
• Password setting, IP setting and devices description setting through Planet Smart discovery utility
• Firmware upgrade via remote Web interface
• Reset Button at the front panel for the factory default reset
• Display the current operating temperature
