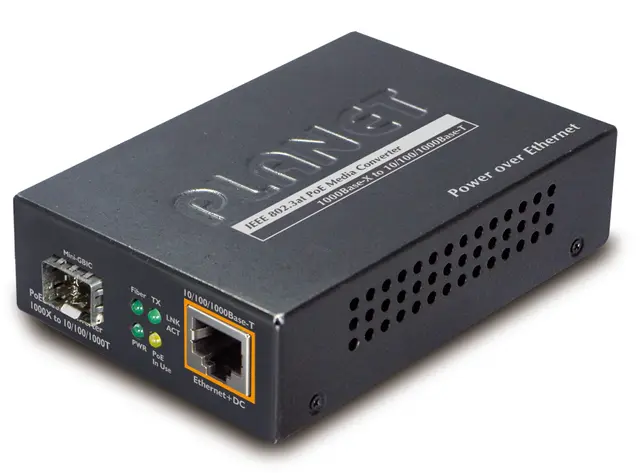

Planet GTP-805A
IEEE802.3at PoE 10/100/1000Base-T to MiniGBIC (SFP) Converter
Key Features
Interface
• 1-Port RJ-45 interface
- 1-Port Data + Power output
• 1-Port Fiber Optical
- GTP-805A: LC Fiber Interface
• DC 52V power input socket
PoE
• Complies with IEEE 802.3af standard and IEEE 802.3at standard, Mid-Span PSE
• Provides DC 52V power over RJ-45 Ethernet cable to devices with Ethernet port
• Supports PoE Power up to 30 Watts for each PoE port
• Auto detect of IEEE 802.3at / IEEE 802.3af PoE equipments, protecting the devices from being
damaged by incorrect installation
• Remote power feeding up to 100m
• IEEE 802.3at / IEEE 802.3af Splitter devices compatible
Hardware
• Metal Case
• LED indicators
- Power LED
- PoE In-use
- Fiber LNK / ACT
- TP LNK / ACT
• DIP-switch: LFP (Link Fault Pass-through) mode selection
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3at Power over Ethernet standard
• IEEE 802.3af Power over Ethernet enhancements Standard
• FCC Part 15 Class A, CE
