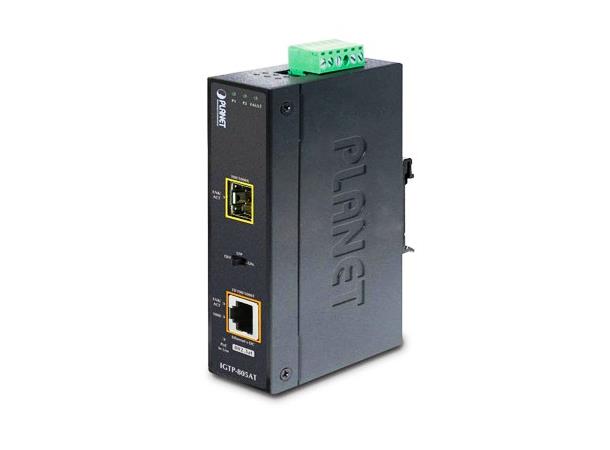

Planet IGTP-80xT Series
1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter
Physical Port
• 1-Port 10/100/1000Mbps RJ-45 interface, auto-negotiation and auto MDI / MDI-X
–1-Port Data + Power output, 802.3af / 802.3at PoE standard compatible
–10/100/1000Base-T: 1-Port Cat. 5/5e/6 UTP cable, up to 100 meters
• 1-Port Gigabit Fiber Interface
–IGTP-802T: SC Fiber Interface
–IGTP-802TS: SC Fiber Interface
–IGTP-805AT: LC Fiber Interface (Vary on SFP Module, 100/1000 dual mode support)
Hardware
• LED Indicators
–System: Power 1, Power 2 and Fault LED
–Fiber port: LNK / ACT
–10/100/1000Base-T port: LNK / ACT, PoE In-use
• DIP switch: LFP (Link Fault Pass-through) mode selection
IEEE 802.3af / 802.3at PoE
• Complies with IEEE 802.3af and IEEE 802.3at standard, End-Span PSE
• 24V / 48V DC Power Input for PoE
• Provides DC 52V power over RJ-45 Ethernet cable to devices with Ethernet port
• Supports PoE Power up to 30 Watts for PoE port
• Auto-detect of PoE IEEE 802.3at / IEEE 802.3af equipments, protecting the devices from
being damaged by incorrect installation
• Remote power feeding up to 100m
• IEEE 802.3at / IEEE 802.3af Splitter devices compatible
Industrial Case / Installation
• IP-30 Aluminum metal case protection
• DIN Rail and Wall Mount Design
• 24 and 48V DC, redundant power with polarity reverse protect function and connective
removable terminal block for master and slave power
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operating temperature
