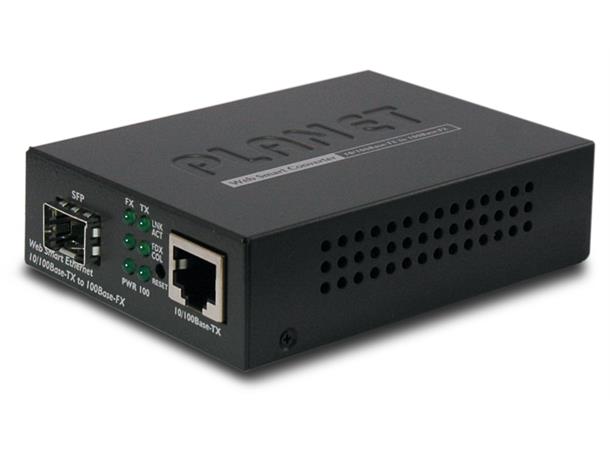

Planet FT-90x Series
10/100Base-TX to 100Base-FX Web Smart Media Converter
Denne mediakonverteren bruker SFP modul på fibersiden. Se tilbehør
Key Features
• One-channel media conversion between 10/100Base-TX and 100Base-FX
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX standard
• Auto-Negotiation for 100Base-TX Half-Duplex or 100Base-TX Full-Duplex
• Supports auto MDI/MDI-X function on RJ-45 Port
• Compact size work with PLANET MC family Media Chassis (MC-700/1000R/1500)
• TS-1000 OAM
• Built-in IP-Base Web interface for remote management
• Supports PLANET EASY-DISCOVERY Utility for deploy management
• Layer 2 Smart Feature
- IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
- Supports Maximum frame size to 2Kbytes.
- Store-and-Forward mechanism
- IEEE 802.1Q VLAN tagging
- Two levels of priority queue
- 802.1p QoS Scheme
- Bandwidth Control (Kbps) for both Ingress and Egress
- Broadcast Storm Control to optimize network bandwidth.
- Ethernet Statistics on both TP and Fiber interface
- Look Back Test Function (LBT) , Link Loss Return(LLR)
- Firmware upgrade via HTTP protocol
- SNMP Trap for alarm notification
• LED indicators for easy network diagnosing
• Reset Button at the front panel for resetting to factory default
• Choice of fiber-connector from SC, WDM, multi-mode / single-mode fiber /100Base
SFP
