Planet PoE Splitter 12/24V DC Ultra PoE

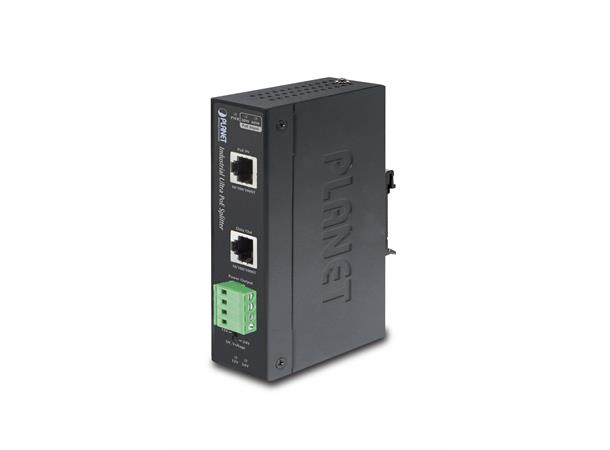

Planet IPOE-171S

Industrial Single-Port 10/100/1000Mbps Ultra PoE Splitter

Interface

• 2 RJ45 interfaces
- 1-port Data + Power input
- 1-port Data output
• 2 DC output (4-pin terminal block)
• 1 DC 12V/24V DIP switch

Power over Ethernet

• Complies with ultra Power over Ethernet end-span and mid-span PD
• Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
• Supports PoE input power up to 110 watts
• Splits the 50~56V DC power over RJ45 Ethernet cable into DC 12V/24V output
• Remote power feeding up to 100 meters

Hardware

• IP30 metal case protection
• DIN rail and wall mount design
• -40 to 75 degrees C operating temperature
