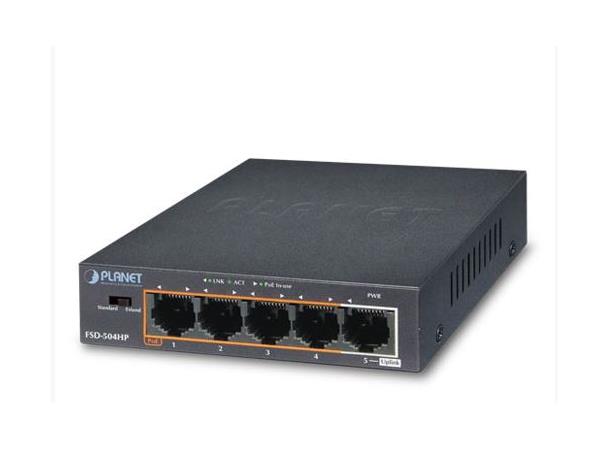

Planet FSD-504HP
4-Port 10/100Mbps 802.3af/at PoE + 1-Port 10/100Mbps
Desktop Switch (60 Watts)
RJ45 Interface•Five 10/100Mbps Fast Ethernet ports
•4 ports support 51V DC power to PoE powered device
Power over Ethernet•Complies with IEEE 802.3af/at Power over Ethernet end-span + mid-span PSE
•Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
•Supports PoE power up to 30 watts for each PoE port
•60-watt PoE budget
•Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
•Auto detects powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100m in the standard mode
Switching•Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
•Flow control for full duplex operation and back pressure for half duplex operation
•1536bytes packet size support
•Integrates address look-up engine, supporting 1K absolute MAC addresses
•Automatic address learning and address aging
•Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware•Desktop palm size
•LED indicators for PoE ready/activity and LINK/ACT
•One 51V DC power jack
