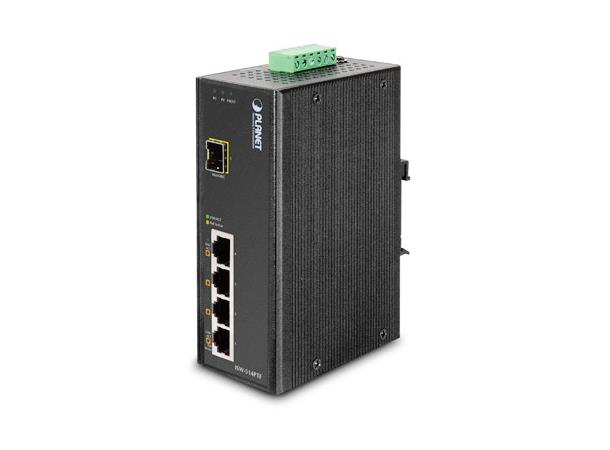

Planet ISW-514PPTF
4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Ethernet Switch – Wide Temperature
Physical Port
ISW-514PTF:
• 4-Port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
• 1-Port 100Base-FX SFP interface
IEEE 802.3af PoE
• Complies with IEEE 802.3af Power over Ethernet End-Span PSE
• Up to 4 IEEE 802.3af devices powered
• Supports PoE Power up to 15.4 Watts for each PoE port
• Auto detect powered device (PD)
• Circuit protection prevent power interference between ports
• Remote power feeding up to 100m
Layer 2 Features
• Supports Auto-Negotiation and 10/100Mbps Half / Full Duplex and Auto MDI/MDI-X
• High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to
optimize the network bandwidth
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control
(Full-Duplex)
• Automatic address learning and address aging
Industrial Case / Installation
• IP-30 aluminum metal case protection
• DIN Rail and Wall Mount Design
• 24 or 48V DC, redundant power with polarity reverse protect function
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operating temperature
