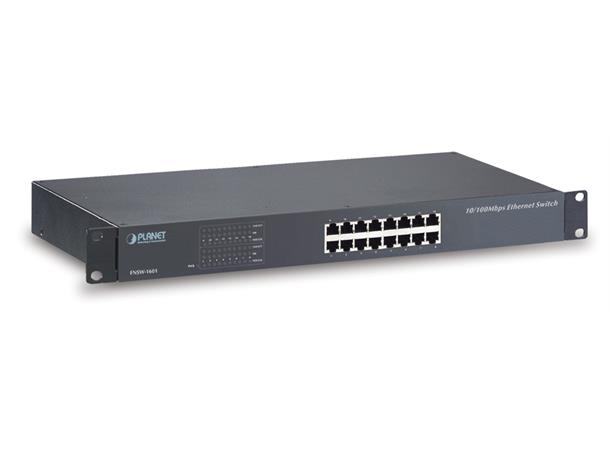

Planet FNSW-1601
16-Port 10/100Mbps Fast Ethernet Switch
Physical Port
• 16 -Port 10/100Mbps Fast Ethernet ports
• Supports Auto MDI/MDI-X function
Layer 2 Features
• Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standard
• Supports powerful Green Ethernet to power saving
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Handles up to 1522 bytes packet size
• Comply IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
• Integrated address look-up engine, support 8K absolute MAC addresses
• Automatic address learning and address aging
• Support CSMA/CD protocol
Hardware Features
• 100~240V AC, 50~60Hz, 0.6A universal Power input
• FCC, CE class A compliant
