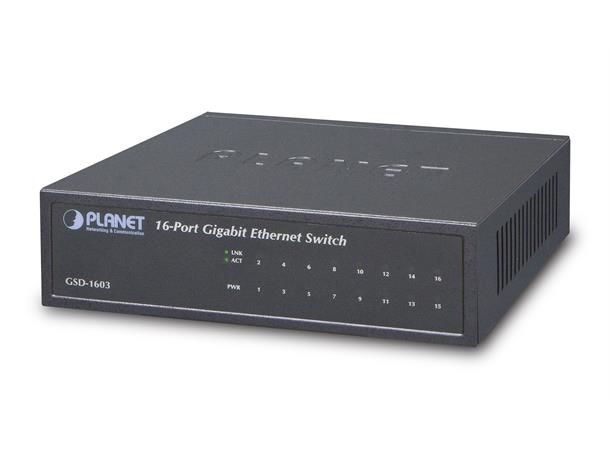

Planet GSD-1603
16-Port 10/100/1000BASE-T Desktop Gigabit Ethernet Switch
Metal (External Power)
Rask og energieffektiv switch.
Physical Port•16 10/100/1000BASE-T Gigabit Ethernet ports
•Supports auto MDI/MDI-X function
Layer 2 Features•Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
•Features Store-and-Forward mode with wire-speed filtering and forwarding rates
•Integrated address look-up engine, supporting 8K absolute MAC addresses
•9K jumbo packet support
•IEEE 802.1Q VLAN packet transparent support
•IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
•Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
•Automatic address learning and address aging
•Supports CSMA/CD protocol
Hardware Features•Made of metal, desktop size and wall-mount design
•LED indicators for system power, per port Link/Act
•12V DC, 1A external power adapter
•FCC, CE Class B compliant
