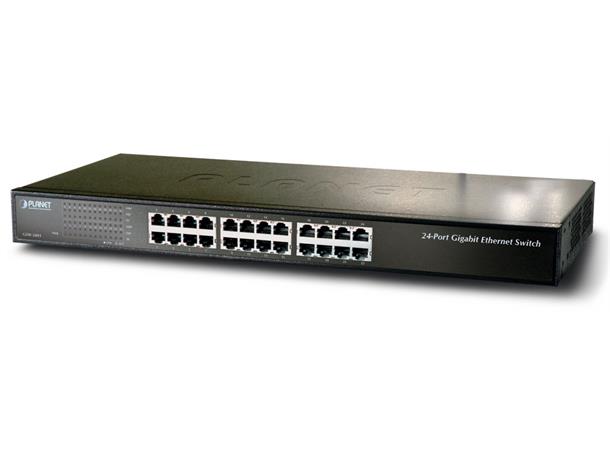

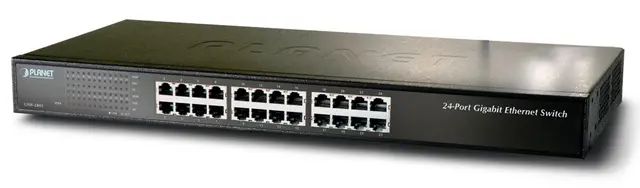

Planet GSW-2401
24-Port 10/100/1000Mbps Gigabit Ethernet Switch
Denne switchen er støyfri (vifteløs)
Key Features
• Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab
1000Base-T
• 24-Port 10 / 100 / 1000Mbps Gigabit Ethernet ports
• Features Store-and-Forward mode with wire-speed filtering and forwarding
rates
• Hardware based 10 / 100Mbps, half / full duplex and 1000Mbps full duplex mode,
flow control and auto-negotiation
• IEEE802.3x flow control for full duplex operation and Backpressure for half
duplex operation
• Integrated address look-up engine, support 8K absolute MAC addresses
• Provide 400KB buffer memory
• 9K Jumbo packet support
• Automatic address learning and address aging
• Supports Auto MDI / MDI-X function
• Support CSMA / CD protocol
• 100~240VAC, 3.0A, 50~60Hz universal Power input
• FCC, CE class A compliant
Specification
Model GSW-2401
Hardware Specification
10/100/1000Base-T MDI/MDIX Ports 24
Throughput (packet per second) 35.7Mpps
Switch fabric 48Gbps / non-blocking
Weight 2.71kg
Power Consumption / Dissipation 34 watts / 116 BTU
Power Requirement 100-240V AC, 0.6A, 50/60Hz
Dimension (W x D x H) 440 x 180 x 45 mm, 1U height
Switch Processing Scheme Store-and-Forward
Address Table 8K entries
Jumbo packet size 9K
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Temperature Operating: 0~50 Degree C
Storage: -40~70 Degree
Humidity Operating: 5~90%
Storage: 5~90% (Non-condensing)
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)
