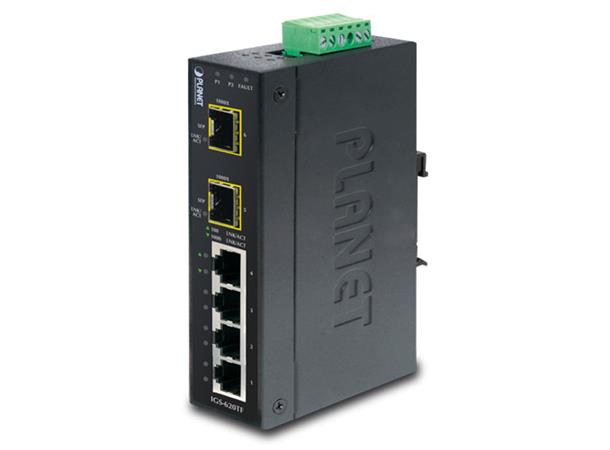

Planet IGS-620TF
Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Physical Port•4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
•2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
Fiber Port Redundancy•Link status auto-detect and redundant on Dual ports with the same connector type
•Only Primary-Port is active at a time, the Backup-Port is blocked
•When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically.
•Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port.
Layer 2 Features•Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
•High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
•9K Jumbo Frame Size support
•Backplane (Switching Fabric): 12Gbps
•Integrated address look-up engine, support 1K absolute MAC addresses
•Automatic address learning and address aging
•CSMA/CD Protocol
Industrial Case / Installation•Slim IP30 metal case protection
•DIN Rail and Wall Mount Design
•Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable•Supports EFT protection 6000 VDC for power line
•Supports 6000 VDC Ethernet ESD protection
•-40 to 75 degrees C operating temperature
