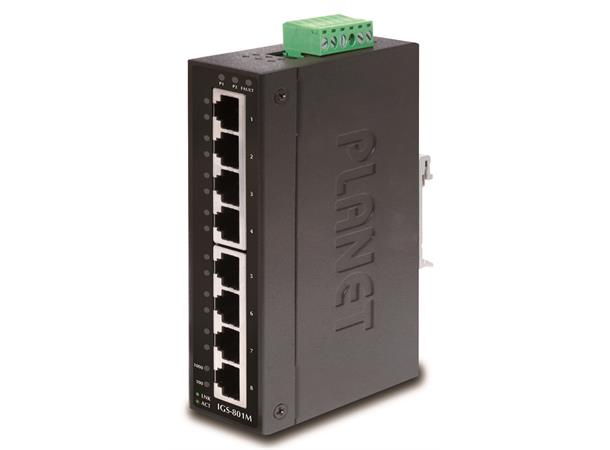

PLANET IGS-801M
8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch with non-blocking wire-speed performance and new slim type with IP-30 metal shape for easily deployment in Heavy Industrial demanding environments.
Husk strømforsyning hvis dette ikke er tilgjengelig fra før.
Remote and Centralized Management
For efficient management, the IGS-801M is built with Web-Based management design to offer a user-friendly configuration interface. Affording the current network to grow and expand, the IGS-801M supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the devices from the Internet whenever you are at work or at home.
Fast Recovery to a Redundant Ethernet Network
The IGS-801M features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (IEEE 802.1w RSTP) and redundant power supply system into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures.
Key Features
Physical Port
• 8-Port 10/100/1000Base-T RJ-45 copper interface
Layer 2 Features
• Supports Auto-Negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T/100Base-TX and 1000Base-T ports
• Auto-MDI/MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Backplane (Switching Fabric): 16Gbps
• 9K Jumbo packet size support
• 8K MAC Address Table
• VLANs:
- IEEE 802.1Q Tag-Based VLAN
- Up to 64 VLANs groups, out of 4096 VLAN IDs
- Port-Based VLAN
• Link Aggregation
- Up to 4 trunk groups
- Up to 8 ports per trunk group with 16Gbps bandwidth
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (Static Trunk)
• Spanning Tree Protocol:
- IEEE 802.1d classic Spanning Tree Algorithm
- IEEE 802.1w Rapid Spanning Tree Protocol
Quality of Service
• 4 priority queues on all switch ports
• Traffic classification:
- IEEE 802.1p CoS
- IP TOS / DSCP
• Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
• IGMP Snooping v1 and v2
• IGMP Query mode for Multicast Media application
Security
• IEEE 802.1x Port-Based Authentication
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Management
• Remote WEB-Based management
• Access through SNMP v1, v2c
• SNMP Trap for alarm notification of events
• Firmware upgrade through web interface
• Cable Diagnostics technology
• Supports PLANET Smart-DISCOVERY Utility for deploy management
Industrial Case / Installation
• IP-30 Aluminum case protection
• DIN Rail and Wall Mount Design
• Redundant Power Design
• 12 to 48V DC, redundant power with polarity reverse protect function
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -10 to 60 Degree C operation temperature
Specification
Model IGS-801M
Hardware Specification
Copper Ports 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
Switch Processing Scheme Store and Forward
Switch Fabric 16Gbps
Throughput (packet per second) 11.9Mpps
Address Table 8K entries
Share Data Buffer 176 kilobytes on-chip frame buffer
Flow Control IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-Duplex
Jumbo Frame 9Kbytes
LED System:
Power 1, Power 2, Fault Alarm
Ports:
10/100 Link/Act
1000 Link/Act
Installation DIN rail kit and wall mount ear
Power Supply External Power Supply: DC 12~48V
Redundant power DC 12~48V and connective removable terminal block for master and slave power
Power Consumption 8.2 Watts (Full load)
Case Dimension (W x D x H) IP-30, 135 x 87 x 32 mm
Weight 473g
Layer 2 Function
System Configuration Web Browser, SNMPv1, v2c monitor, SNMP Trap
Port configuration Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
VLAN 802.1Q Tagged Based VLAN, up to 64 VLAN groups
Port-Based VLAN , up to 8 VLAN groups
Port trunking IEEE 802.3ad LACP / Static Trunk
Support 4 groups of 8-Port trunk support
QoS Traffic classification based, Strict priority and WRR
4-level priority for switching
- 802.1p priority
- DSCP/TOS field in IP Packet
IGMP Snooping IGMP (v1/v2) Snooping, up to 256 multicast Groups
IGMP Querier mode support
Storm Control • Broadcast storm control
• Multicast storm control
• Flooded Unicast storm control
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-2863 Interface MIB
Q-Bridge MIB
RMON Group 1 statistics
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
Stability testing IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Environmental Specification
Operating Temperature: -10~60 Degree C
Relative Humidity: 5~90% (non-condensing)
Storage Temperature: -40~85 Degree C
Relative Humidity: 5~90% (non-condensing)
