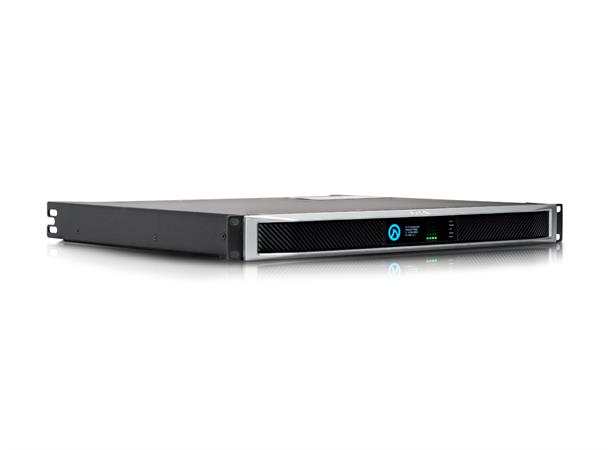

LEA Connect 704 70/100V DSP Installasjonsforsterker 4 x 700W, WiFi

LEA Connect 704 70/100V DSP

Installasjonsforsterker 4 x 700W, WiFi

Varenr:122538

Alt varenr:CS704

38 498,-ink. mva

Bestillingsvare

Beskrivelse

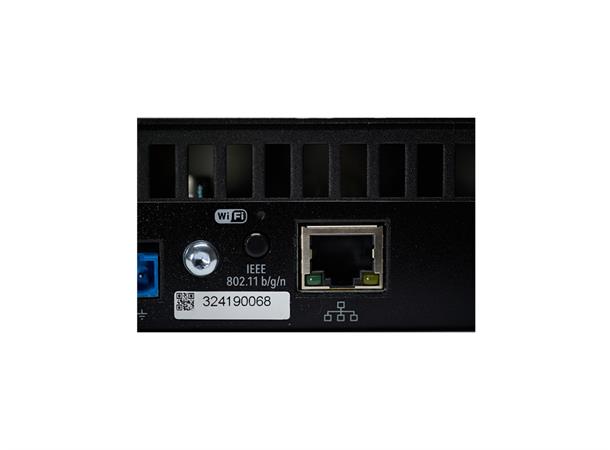

LEA Connect 704 kombinerer IoT – «the internet of things», med profesjonelt forsterkerdesign. Brukergrensesnittet er web-basert, og kan aksesseres på tre måter: via innebygget WiFi aksesspunkt, husets WiFi eller LAN.

Dette muliggjør også overvåking og styring av forsterkerne via «LEA PROFESSIONAL CLOUD» – uten behov for VPN til husets LAN. Dette forenkler tidstyver som feilsøking og support, og gjør at du kan være i forkant av eventuelle problemer som skulle oppstå.

SPESIFIKASJONER:

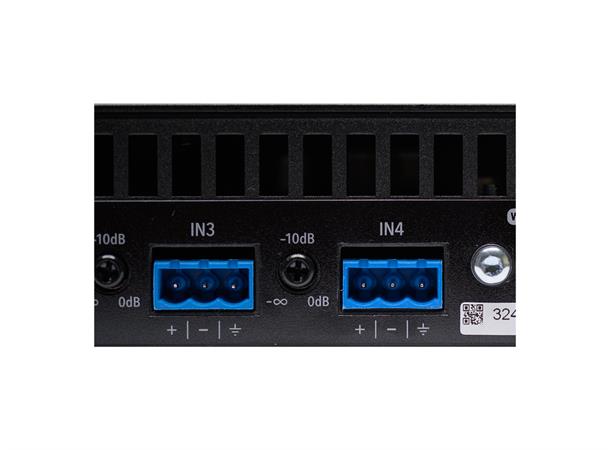

Audio Spec	Inputs	Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity (2CH = 2 inputs, 4CH = 4 inputs, 8CH = 8 inputs)
	THD+N	0.1% (20Hz to 20kHz)
	Frequency Response	20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
	Signal to Noise Level	105dB (20Hz to 20kHz referenced to 8?)
	Crosstalk	70dB (20Hz to 20kHz)
	Amplifier Output Classification	Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP	DSP Architecture	Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
	Input Matrix	Routable matrix; any input to any output with primary and secondary input priority
	Crossovers	Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
	Parametric EQ	8 Band Parametric EQ per channel
	Output Delay	100ms per channel
	Output Protection	DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
	User Adjustable Limiting	Peak Voltage and RMS Voltage
	Load Monitoring	Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

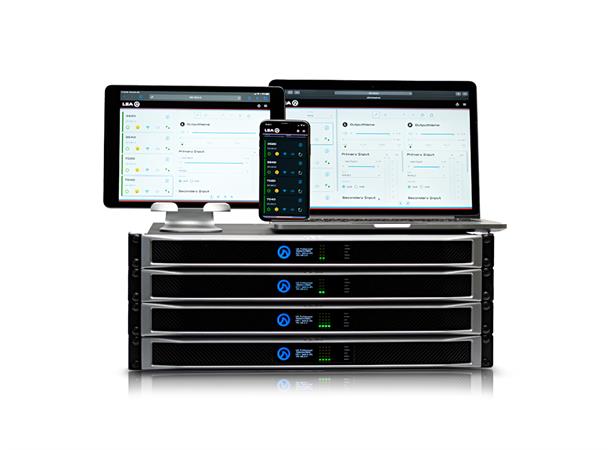

Control, Monitoring, Network	User Interface	Web Browser User Interface, 3rd Party API control, or CLOUD control

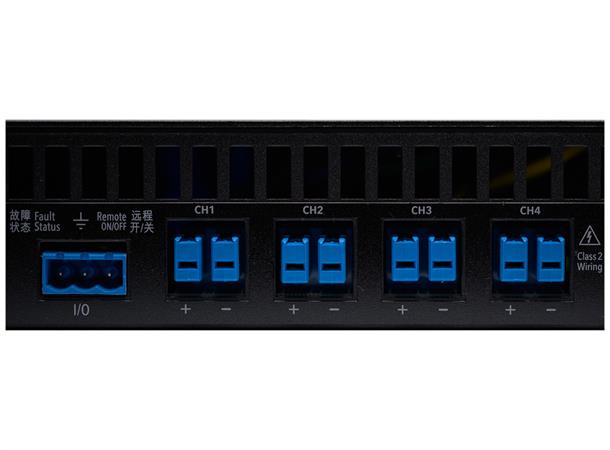

Control, Monitoring, Network	External I/O	External I/O In: Toggles Remote On/Off External I/O Out: Indicates Amplifier Health

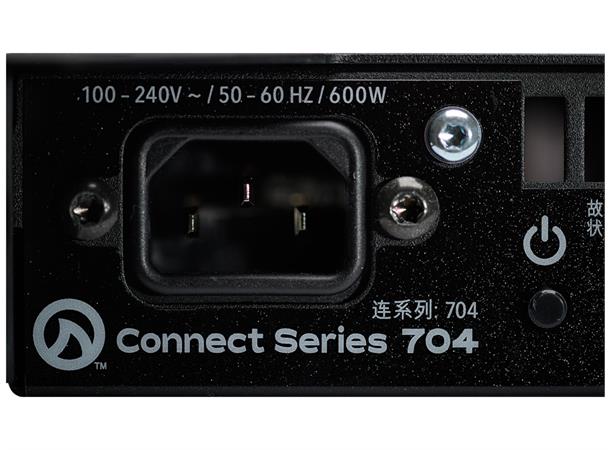

Operation	AC Mains	100VAC - 240VAC +/- 15% 50Hz or 60Hz
Operation	Power Supply	Universal Switch Mode Power Supply with Power Factor Correction (No PFC in 84, 164, 88, & 168)
Physical Spec	Dimensions (L x W x H)	Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U) Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
	Weight	352 & 702: 10lbs / 3.4kg \| Shipping: 17.4lbs / 7.9kg 354 & 704: 14lbs / 4kg \| Shipping: 18.7lbs / 8.5kg 84 & 164: 12.25lbs / 5.56kg \| Shipping: 16.55lbs / 7.51kg 88 & 168: 13.55lbs / 6.15kg \| Shipping: 17.95lbs / 8.14kg
	Cooling	Front to Rear Variable Fan Speed Cooling Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m
