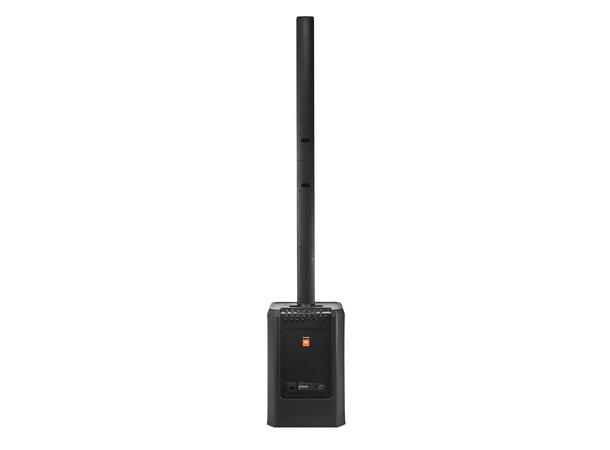

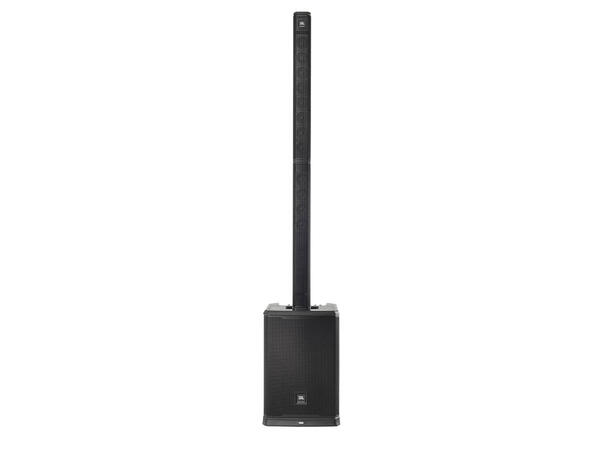

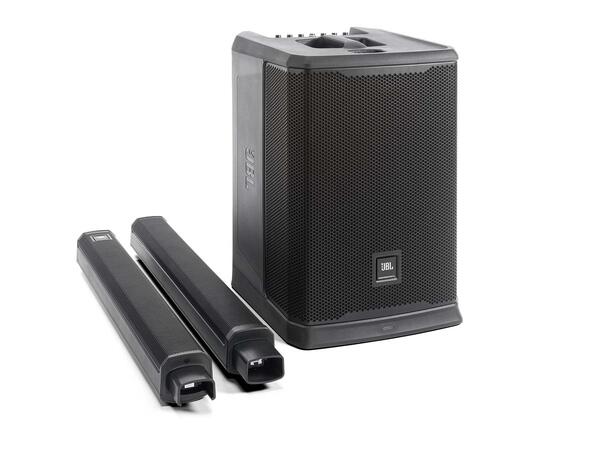

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.
Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier. PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.

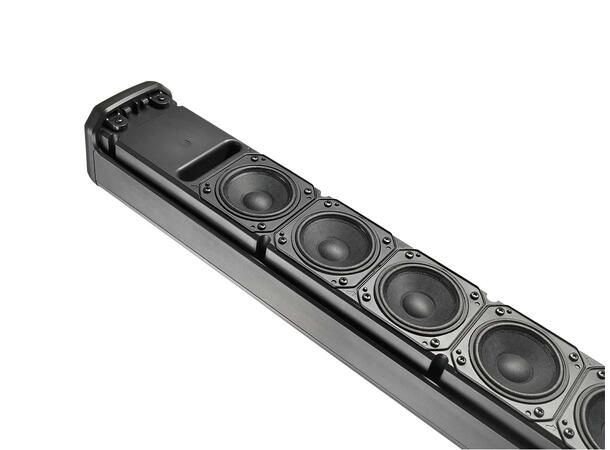

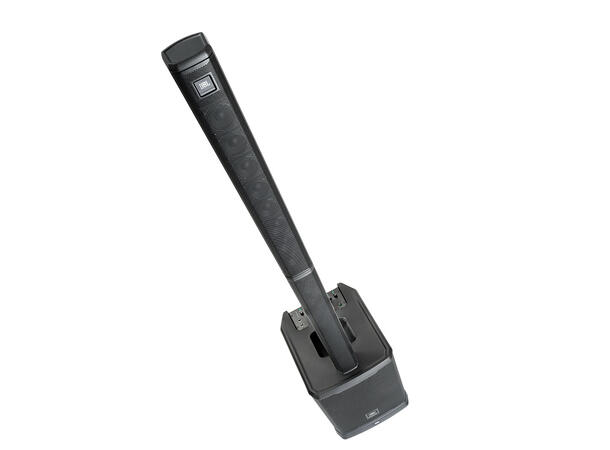

- Vertical array of 12 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back
- Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
- JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
- Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
- Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range

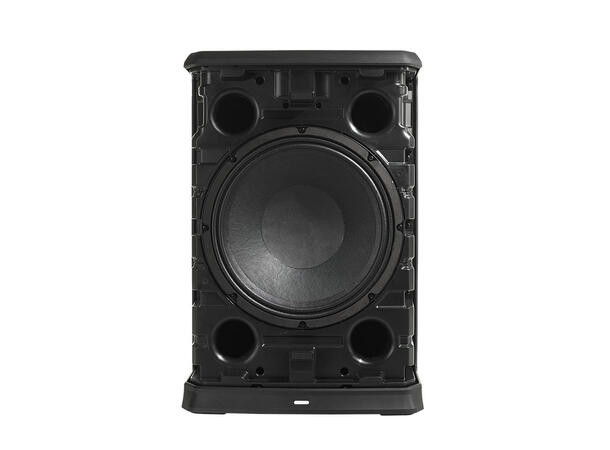

- 12-inch bass-reflex woofer extends low-end response to 35 Hz
- 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes
- Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
- 130 dB max SPL

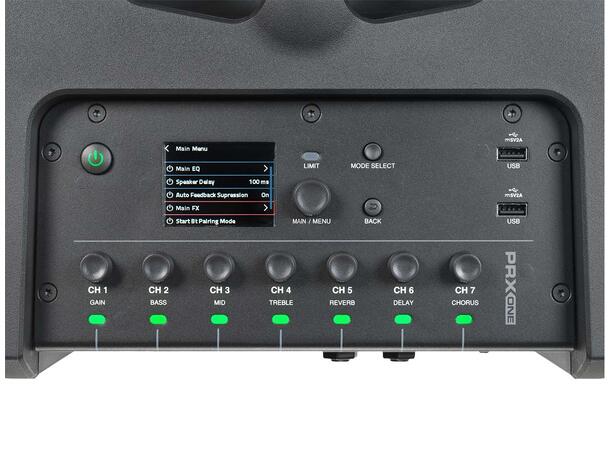

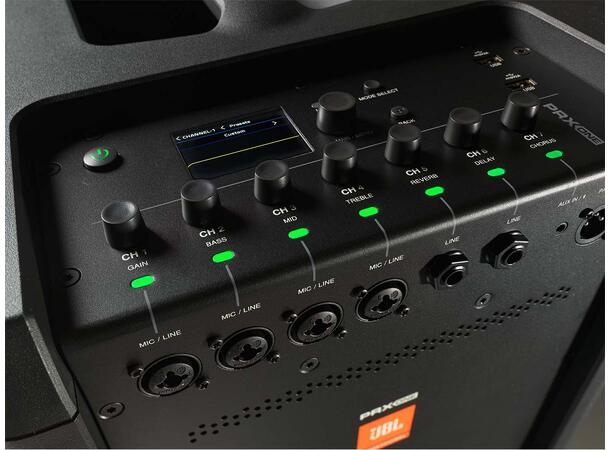

- Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends.
- Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup
- Triple Tier DSP control offers multi-level user experiences based on knowledge level
- dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control
- One-touch ducking by Soundcraft ensures speech is always heard

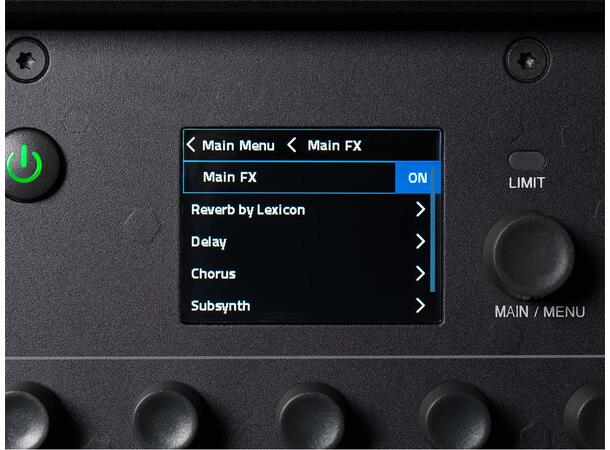

- Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
- 8 user presets instantly optimize system sound
- Robust audio connectivity: I/Os include 4 XLR Combo, 2 Hi-Z, 1 1/8-inch/BT audio and 1 XLR Pass Thru
- 2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
- Two channels of true +48V phantom power expand microphone support
- Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app
- Full app control using JBL Pro Connect
- Rugged enclosures withstand the rigors of the road
- Optional bracket and adapter allow array to be wall or truss-mounted independently of subwoofer for permanent installations

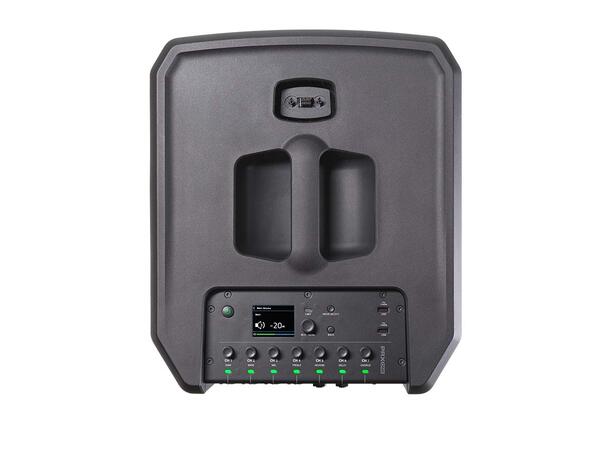

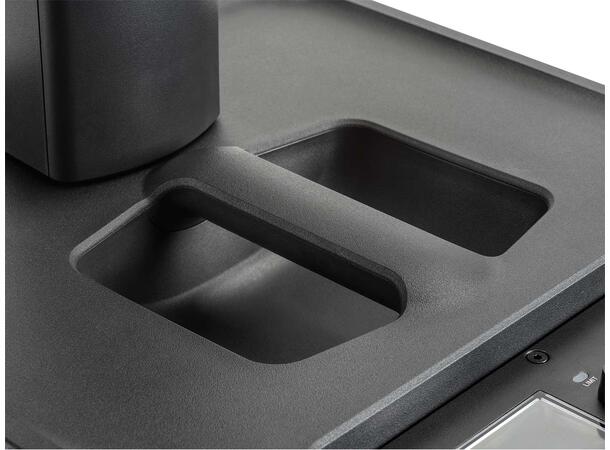

- Computer-modeled ComfortGrip handle simplifies transport

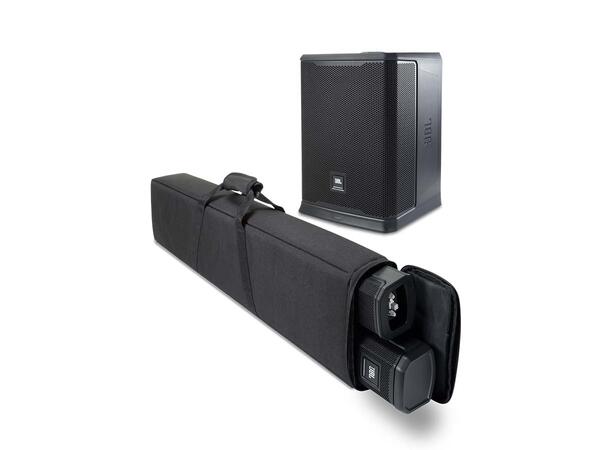

- Included nylon carrying bag for array
- Attractive, discreet form factor
- Weight: 55.65 lbs (25.7 kg)
