JBL PRO PRX812W aktiv 12" topp

Aktiv høyttaler med 12" og horn

Varenr:122613
Alt varenr:PRX812W
16 998,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse

12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor.



Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

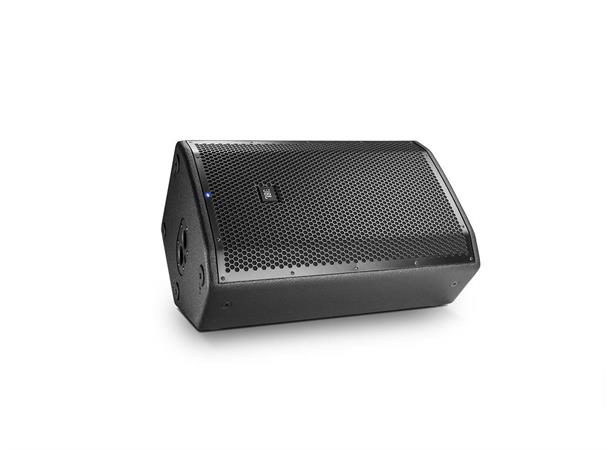

  • PRX812 is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system.

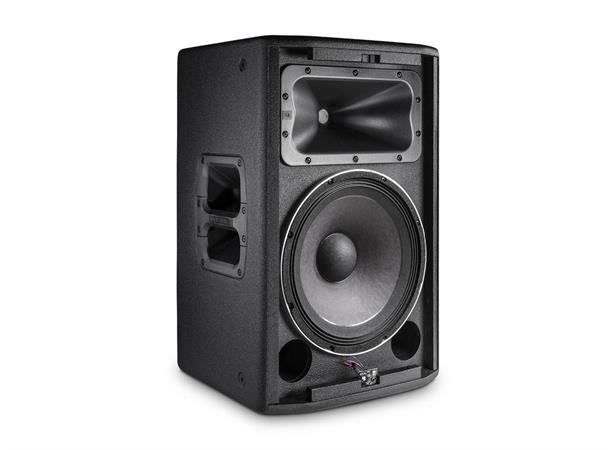

  • The PRX812 is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

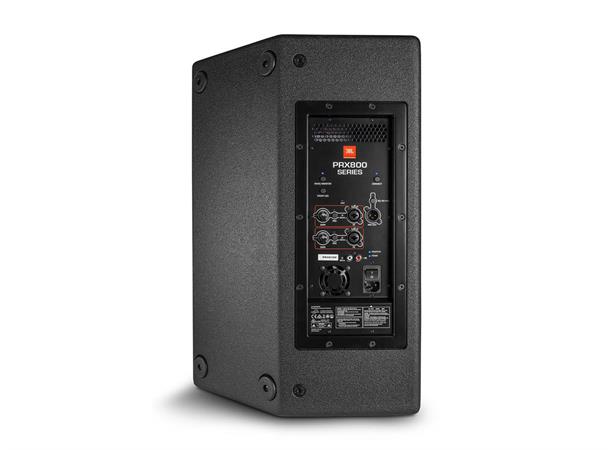

  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
System TypeSelf Powered 12”, two-way, bass-reflex
Maximum SPL Output135 dB peak
Frequency Range (-10dB)Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB)Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
Inputs2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance20K Ohms (balanced), 10K Ohms (unbalanced)
Signal IndicatorsLimit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
EQUser selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input)dbx Type IV™ limiter circuit
Crossover Frequency1.85 kHz
DesignHighly efficient Class-D amplifier
Power Rating1500W (750W x 2)
AC power input100V - 240V ~ 50/60 Hz
LF Driver1 x JBL 272G 305 mm (12 in) woofer
HF Driver1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern90° x 50° nominal
Directivity Index (DI)10.2 dB
Directivity Factor (Q)10.4
EnclosureAsymmetrical, 18 mm, Duraflex coated plywood
Suspension / MountingDual 36 mm pole socket, 12 x M10 Suspension Points
Transport1 x injection molded handle with backing cup
FinishObsidian DuraFlex™ finish
GrillePowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D)599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in)
Net Weight40 lbs / 18.1 kg
Gross Weight21.2 kg (48.0 lb)
Mic Inputs2
Phantom PowerNo
Effects25 parametric EQ's and speaker delay
Outputs1 x XLR (mix out)
