8" Ceiling Speaker - disse selges i stk.

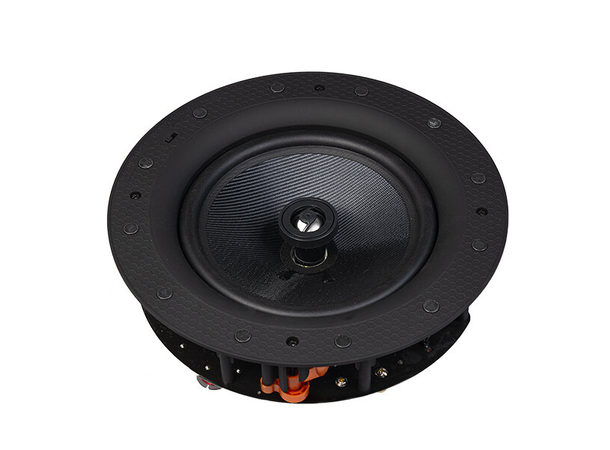

2-way full range passive speaker for ceiling and in-wall installation. Thanks to its 8" woofer, GCF8 delivers more bass and SPL than its 6" brother, making it the perfect choice for higher SPL sound distribution both in residential and commercial applications such as apartments, villas, home theaters, hotels, hospitals, bars and restaurants, corporate buildings.
GCF8 comes with a circular, frameless design grille, an orientable tweeter and is available in 8 ohm for small to medium-sized, hi-fi applications as well as in 70/100V version (GCF8T) for large scale distributed sound installations where a very high number of speakers is required.
For best performance, depending on power/quantity needs, this speaker can be combined with any KGEAR amplifier (GA201, GA41/41L, GA43/43L, GA46/46L) and subwoofer (GS6, GCF8S, GWF8S).

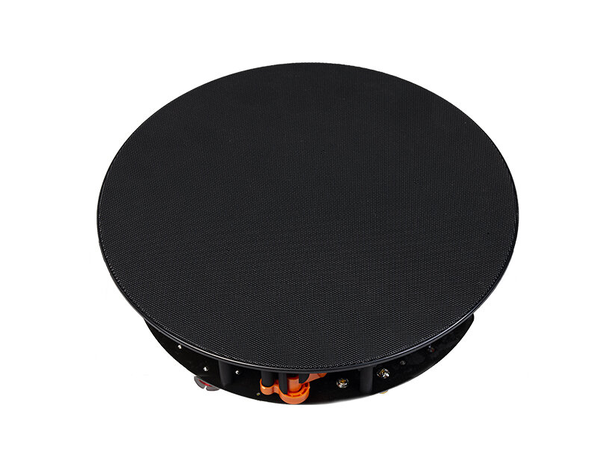

Available in black or white colour, the frameless magnetic grille can also be painted to match any environment.
Tech specs
GENERAL
Rated Power (@8O): 80W
Peak power (@8O): 160W
Nominal Power (@100V): 4/8/16/32W taps (GCF8T - GCF8TW)
Nominal Power (@70V): 2/4/8/16W taps (GCF8T - GCF8TW)
Impedance: 8O
Frequency Range: 50Hz – 20KHz (-3dB average)
Maximum SPL(1): 112dB (peak)
Continuos SPL: 100dB
Coverage: 130° conical
TRANSDUCERS
8" coax ferrite magnet woofer
1" titanium dome tweeter
AUDIO I/O
Gold plated push terminals
PHYSICAL OVERVIEW
Ø Outer: 277 mm (10.9 in)
Ø Inner 258 mm (10.2 in)
Depth: 105 mm (4.1 in)
Weight: 2.04 kg (4.5 lb)
Material: ABS
Colors: White (GCF8W - GCF8TW)
Black (GCF8 - GCF8T)
