Rich, punchy bass with low distortion
Using the Kelton method*, the CM-510ST filters out unwanted mid and high-range frequencies and includes our newly developed Vortex Bass Accelerator technology to deliver pure, smooth bass with a quick response.
* The Kelton method extracts bass sound from a speaker by acoustically cutting out mid-to-high-range sounds. This is achieved by emitting the sound from a duct in a chassis sealed to the front and back of the unit.
Hardware
Loudspeaker Type
Kelton method subwoofer
Rigging and Hardware
20 × M8 threaded mounting points on side
Enclosure
Black: Wood w/Polyuretane paint
White: Wood w/water-based paint
System data
Frequency response (- 10 dB, Typical)
45 Hz - 150 Hz
Sensitivity (1W/1m)
95 dB (half space)
Nominal Impedance
8 O
Loudspeaker data
Power Handling (RMS/Program)
200 W / 400 W
* IEC60268-5
Transformer taps
70 V: 200 W / 100 W / 50 W / 25 W
100 V: 200 W / 100 W / 50 W
Maximum SPL
124 dB (peak, half space)
* Calculated from the power handling and sensitivity
Driver Configuration
10" (250 mm) cone
Connectors

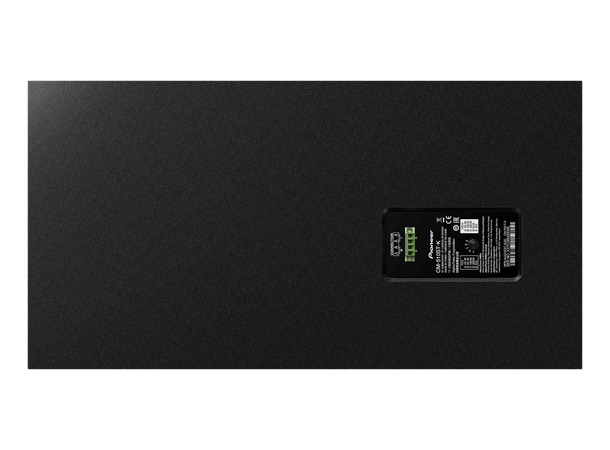

Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Dimensions / Weight
Dimensions ( W x H x D)
260.0 x 500.0 x 400.0 mm
(10.23" x 19.69" x 15.75")
Weight / piece
17.9 kg
39.5 lbs.
Other
Color

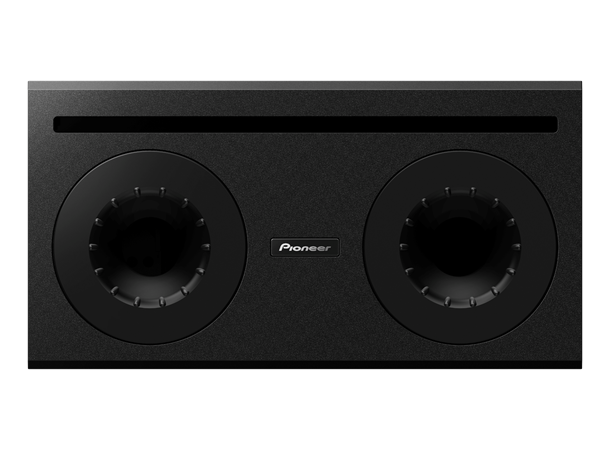

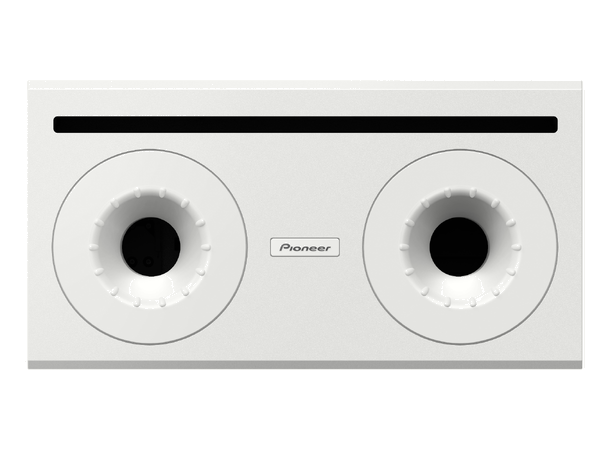

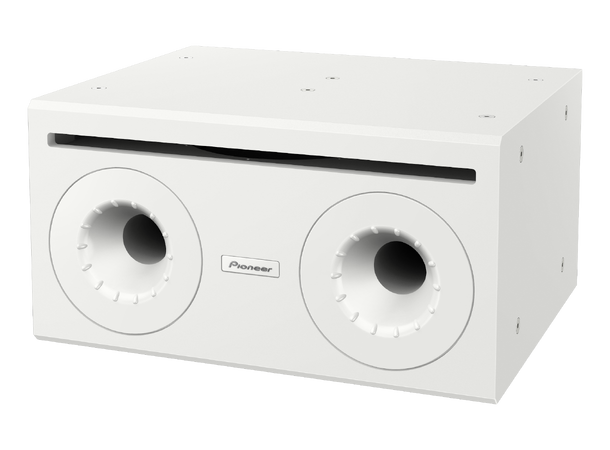

CM-510ST-K: Black, CM-510ST-W: White
