JBL Control SB2210 sub med 2 x 10" 500 Watts Power handling JBL Control SB2210 sub med 2 x 10" 500 Watts Power handling

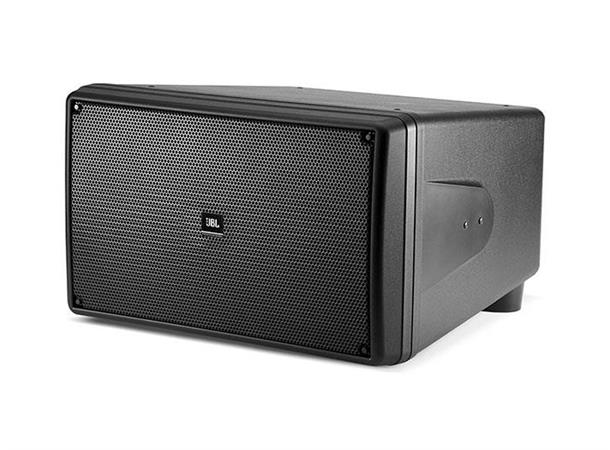

JBL Control SB2210 sub med 2 x 10"

500 Watts Power handling

Varenr:123051
Alt varenr:CONTROL-SB2210
16 998,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse

The internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size. The Control SB2210 produces warm, punchy low-end sound.

Features

  • 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
  • 500 Watts Power handling
  • Frequency Response Down to 38 Hz
  • 13 x M6 Insert Points Including Inserts for Optional U-Bracket
  • Compact, Low Profile Design

Frequency Range (-10 dB)		38 Hz - 500 Hz
Frequency Response (-3 dB)48 Hz - 95 Hz
Power Rating500W (2000W peak) Continuous Pink Noise (2 hrs)
1000W Continuous Program(2 hrs)
400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage60.0VRMS (2 hrs), 120V peak
Sensitivity95 dB, 1W @ 1m in half-space (2? loading, average 50 – 90 Hz)
Max SPL122 dB in half-space (2? loading)
Nominal Impedance8?
Minimum Impedance7.2? at 160 Hz
Recommended Filter45 Hz, 24 dB/oct high-pass filter
Low FrequencyTwo 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
Enclosure MaterialHigh Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
GrilleThermoset composite coated steel, zinc-plated, 3-layer foam backing.
EnvironmentalIP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & , UV. Passes Mil-STd-202F for salt spray.

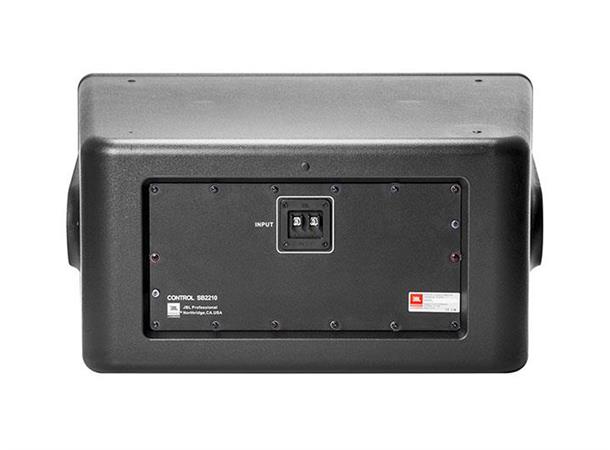

TerminalsScrew-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
Agency RatingROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
ColorsBlack or white (-WH)
Dimensions (H x W x D)355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight23.31 kg (51.4 lb)
Shipping Weight25.85 kg (57.0 lb)
Included Accessories1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
Optional AccessoriesMTC-210UB (& ,-WH) U-Bracket
MTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.
Transformer Taps:
70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W
