Her er du nå: Hovedmeny   >   PROAUDIO   >   Subwoofer   >   JBL   >   JBL PRO PRX815W-XLF aktiv 15" sub
JBL PRO PRX815W-XLF aktiv 15" sub Aktiv 15" sub kompakt formfaktor JBL PRO PRX815W-XLF aktiv 15" sub Aktiv 15" sub kompakt formfaktor JBL PRO PRX815W-XLF aktiv 15" sub Aktiv 15" sub kompakt formfaktor

JBL PRO PRX815W-XLF aktiv 15" sub

Aktiv 15" sub kompakt formfaktor

Varenr:122305
Alt varenr:PRX815W-XLF
20 698,-ink. mva
-+
1 På lager
BeskrivelseSupport
Beskrivelse

15” Self-Powered Extended Low Frequency Subwoofer System with Wi-Fi

The JBL PRX815XLF is a self-powered extended low-frequency subwoofer system. Featuring a JBL 15-inch woofer powered by a 1500-watt class-D amplifier, PRX815XLF delivers incredible output in a lightweight and compact form factor.



Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • The PRX815XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. Due to their rugged construction, they are perfect for AV rental inventories. With the integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer-mounted speaker poles.
  • The PRX815XLF is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX815XLF is comprised of a powerful 2275H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

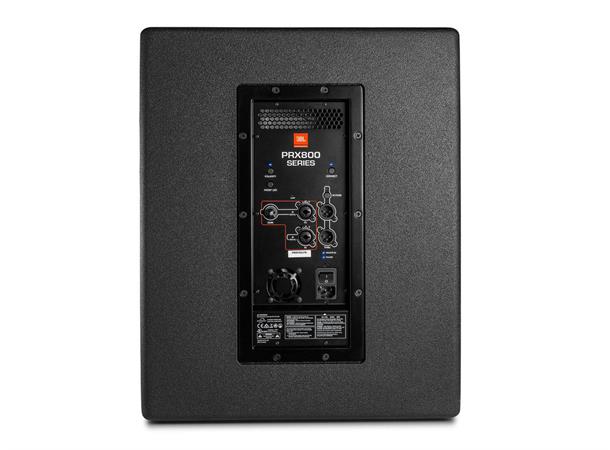

  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
System TypeSelf Powered 15” subwoofer
Maximum SPL Output131 dB peak
Frequency Range (-10dB)36 Hz - 98 Hz
Frequency Response (±3 dB)40 Hz – 87 Hz
InputsTwo Balanced female XLR/ 1/4” combo connectors
Input Impedance20K Ohms (balanced)
Signal IndicatorsLimit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal presentPower: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input)dbx Type IV™ limiter circuit
System Low Pass80 Hz DSP
Loop out Crossover Frequency80 Hz Digital 24db/octave Linkwitz-Riley Filter
DesignHighly efficient Class-D amplifier
Power Rating1500W
AC power input100V - 240V ~ 50/60 Hz

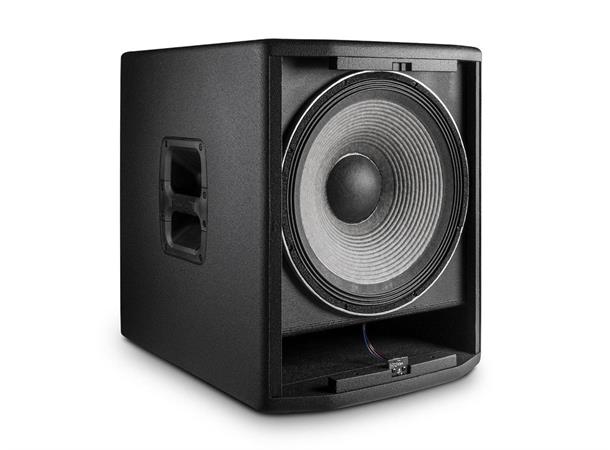

LF Driver1 x JBL 2275H 15 in woofer
EnclosureRectangular, 18 mm, birch-poplar mix
Transport2 x injection molded handles with backing cup
FinishObsidian DuraFlex™ finish
GrillePowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D)548 mm x 446 mm x 572 mm (21.6 in x 17.5 in x 22.5 in)
Net Weight26.3 kg (58.0 lb)
Gross Weight30.3 kg (66.8 lb)
Mic Inputs2
Phantom PowerNo
EQ8-band parametric EQ
Effects25 parametric EQ's and speaker delay
Outputs1 x XLR (mix out)
