Bose ControlCenter CC-1

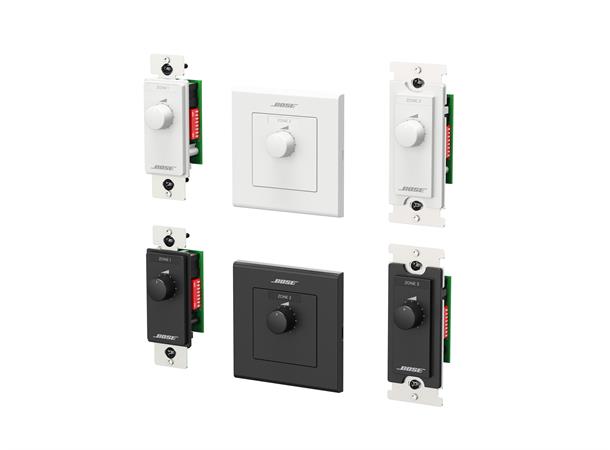

Bose ControlCenter CC-1 zone controllers provide volume control for FreeSpace®, PowerShare, and ControlSpace® products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

Connectors
2 RJ-45 connectors which allow daisy-chaining

Maximum Cable Length
FreeSpace and PowerShare: 2000’ (610 m)
ControlSpace: 500’ (152 m) shielded cable, 100’ (30 m) unshielded cable


• ControlCenter Series
  The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).


• ControlCenter Models

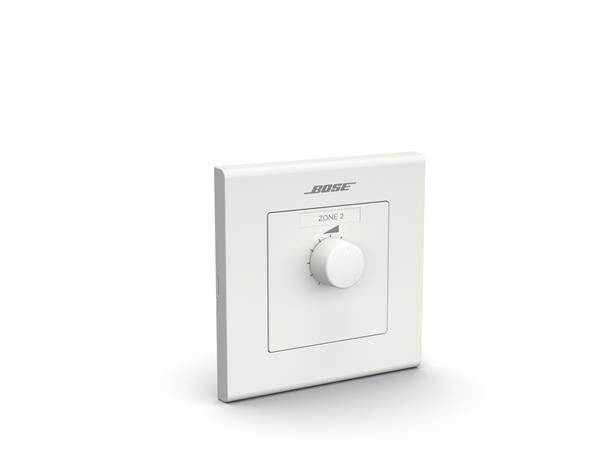

  North American and Japanese models are designed for use with Decora®-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate.


• Custom Labels
  Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.


• CV41 4-to-1 Converter
  The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.
