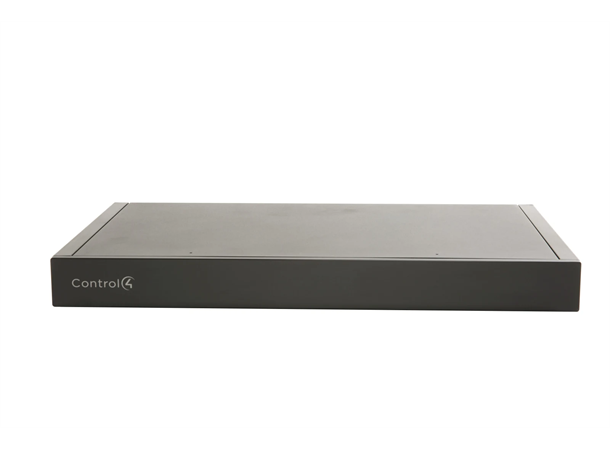

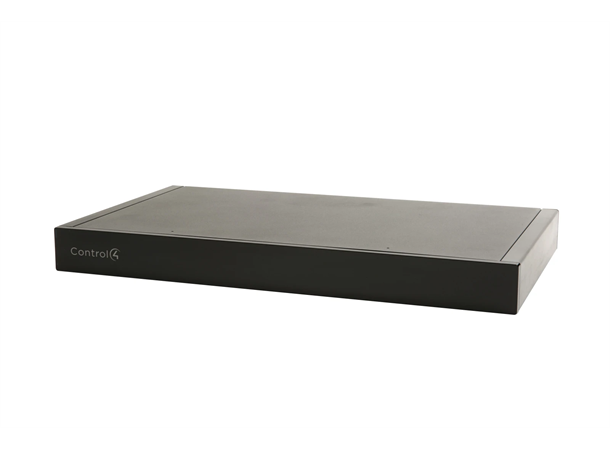

The Control4 C4-IOX v.2 extender is the simple way to expand a Control4 system to control more of the devices around your home including audio/video equipment, garage doors, motion sensors, and other devices that use infrared (IR), serial, contact, and relay connections. The Control4 C4-IOX v.2 extender has a sleek, new industrial design that makes it a great companion to the EA Series of entertainment and automation controllers.
The Control4 C4-IOX v.2 extender features the ability to be powered by PoE+, providing power and network connectivity over a single CAT5e/CAT6 network cable and allowing for greater installation flexibility. In addition, the Control4 C4-IOX v.2 extender provides flexible options for mounting in an equipment rack (1U) or on a shelf. The included rack ears may be installed on the front or back of the Control4 C4-IOX v.2 extender, allowing you to mount the IO Extender at the front or the back of the equipment rack.
Features
- Easily add more control capability to new or existing systems

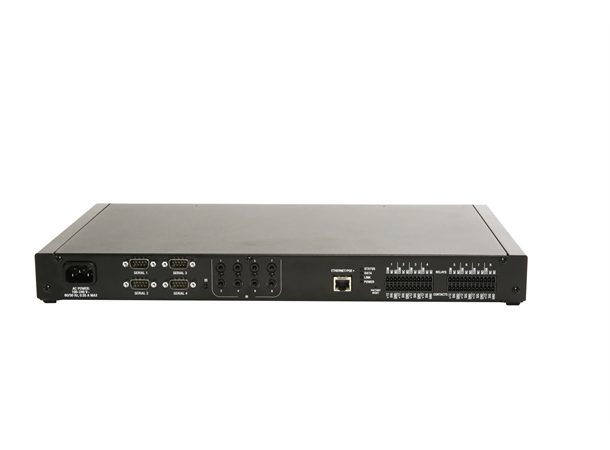

- Packed with I/O: 8 IR outputs, 4 serial outputs, 8 contacts, and 8 relays
- Flexible rack or shelf installation—rack ears included
- Flexible power options—internal universal power supply or PoE+
- Utilizes the same driver as the original IO Extender, maintaining ease of deployment
